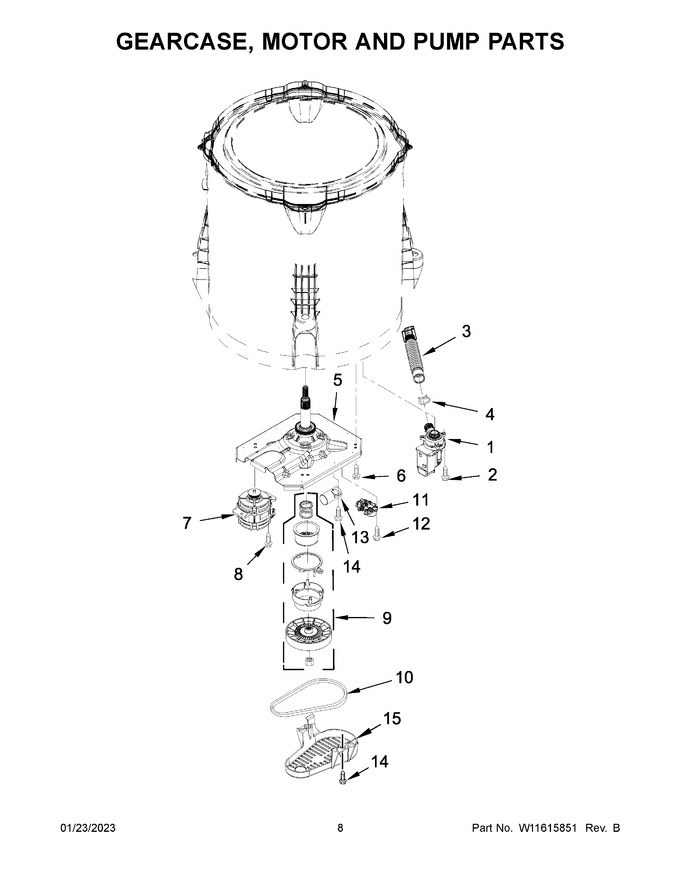

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292579 | Pump Assembly, Drain (Replaces: W10292579) |
|
Immediately | $ 328.86 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 35.78 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 5 | W11454741 | Gearcase Assembly (Replaces: W10903969) |
|
Immediately | $ 300.01 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.55 | ||||
| 7 | W11039788 | Motor, Drive (Replaces: W11028438) |
|
$ 273.29 | |||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.81 | |||||
| 9 | W10759993 | Splutch Kit (50 Hz) |
|
Immediately | $ 41.16 | ||||
| 10 | WPW10006388 | Belt, Drive (Replaces: W10006388) |
|
$ 93.39 | |||||
| 11 | W11511138 | Actuator, Shift (Replaces: W11398782) |
|
Immediately | $ 96.29 | ||||
| 12 | W11596033 | Screw (Replaces: 9741052) |
|
$ 14.23 | |||||
| 13 | W11205047 | Capacitor, Motor Run (Replaces: W10625043) |
|
$ 233.16 | |||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 15 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 49.78 |
