01 - Cover Sheet

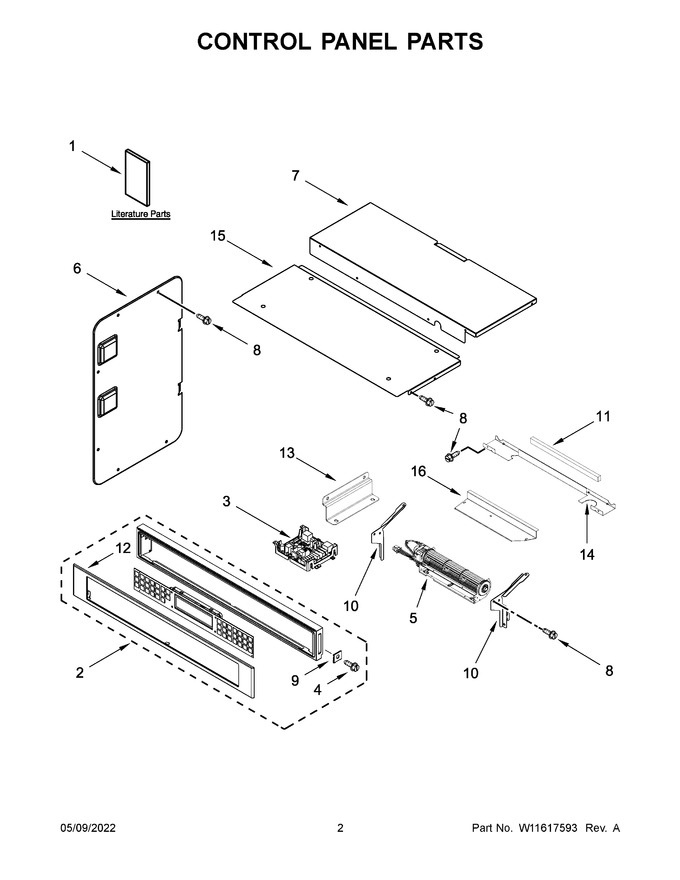

02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Top Venting Parts


07 - Cabinet And Stirrer Parts


08 - Microwave Door Parts


09 - Internal Microwave Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11382204		Owner's Manual		Appelez-nous	-
2	W11600638		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W11304128)		Appelez-nous	-
3	W11448962		Appliance Manager, Copernicus   (Replaces: W11249218)			Immediately	$ 325.47
4	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.02
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 369.76
6	W10655467		Chassis, Combo Side				$ 79.07
7	W11037652		Chassis, Cover Top Back 27" Wifi		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W10588747		Skin, Control Panel (white)		Appelez-nous	-
13	W10283025		Side, Bracket		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W10318159		Chassis, Cover Top Front 27		Appelez-nous	-
16	W10681157		Cover, Combo Blower		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
12A	W10588741		Skin, Control Panel (stainless)				$ 230.27
12B	W10909789		Skin, Control Panel (black Stainless)   (Replaces: W10861075)				$ 497.60
1A	W11382210		Quick Start Guide		Appelez-nous	-
1B	W11340885		Tech Sheet		Appelez-nous	-
2A	W11600637		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11304125)				$ 893.99
2B	W11600636		Assembly, Control Panel (includes Overlay) (black Stainless)   (Replaces: W11304129)		Appelez-nous	-
NI	NP		Rail, Center (not Serviced)		Appelez-nous	-
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 58.86
NI	W11256627		Harness, Signal			Immediately	$ 125.75
NI	W11731943		Harness, Main   (Replaces: W11245670)			Immediately	$ 318.15
NI	W11229448		Harness, Communication			Immediately	$ 224.18
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	4448664		Clamp, Conduit				$ 20.39
NI	WPW10017410		Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 21.17
NI	4454949		Holder, Fuse				$ 90.70
NI	4450800		Screw, Grounding				$ 12.83
NI	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 22.35
