Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11627410 Rail, Side (left)   (Replaces: W11235470) Special Order $ 61.70

2 W11627411 Rail, Side (right)   (Replaces: W11235471) Special Order $ 59.61

3 7101P65360 Screw Appelez-nous -
4 W11171909 Chassis, Combo Side (left) Special Order $ 72.95

5 W11244451 Side, Combo Chassis (right) Appelez-nous -
6 7101P42660 Screw Appelez-nous -
7 W11171004 Cover, Combo Chassis Back Duct Special Order $ 74.55

8 W10283023 Support, Crossbar Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

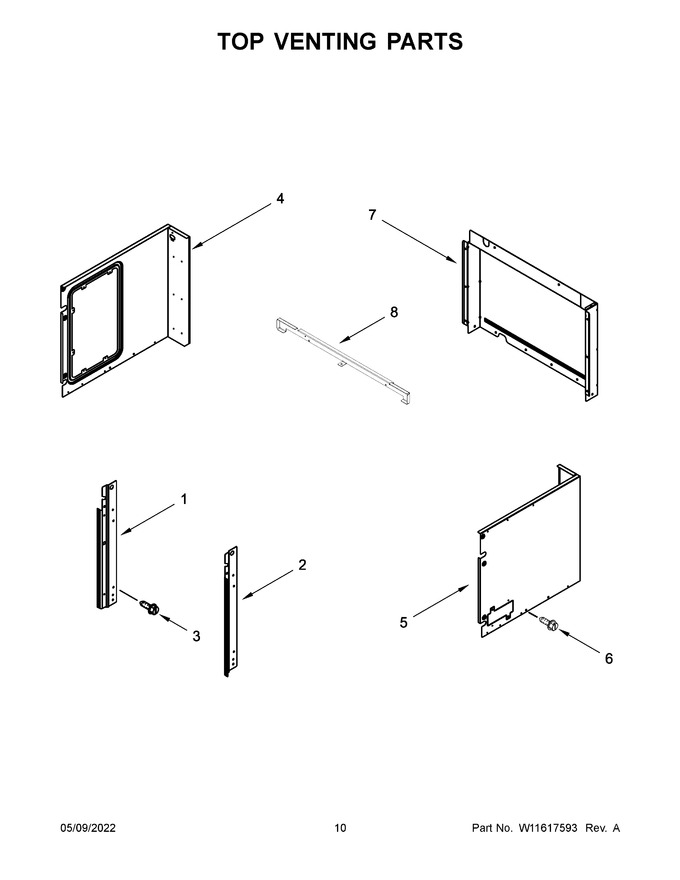

Diagram for KOCE507ESS20
