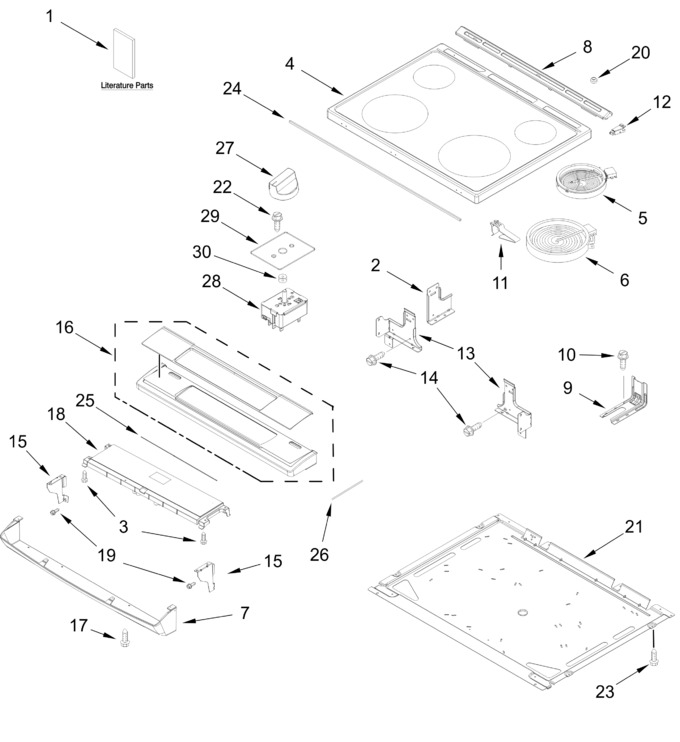

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W10814305 | Support, Cooktop (center) |
|
- | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
$ 14.75 | |||||
| 4 | W11541089 | Cooktop (black) (Replaces: W11523804) |
|
$ 749.03 | |||||
| 5 | W11171119 | Element (1200w) (Replaces: 8273994) |
|
Immediately | $ 236.89 | ||||
| 6 | W11517959 | Element, Dual (3000w) (Replaces: W11282542) |
|
Immediately | $ 146.68 | ||||
| 8 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 9 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 24.19 | ||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10814304 | Support, Cooktop (right) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W11542168 | Console (stainless) (Replaces: W11512196) |
|
Immediately | $ 325.39 | ||||
| 17 | W10516115 | Screw |
|
$ 14.52 | |||||
| 18 | W11747115 | Electronic, Control (lcx) (Replaces: W11691895) |
|
Immediately | $ 453.14 | ||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 20 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 21 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 22 | W10674068 | Screw |
|
$ 24.39 | |||||
| 23 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 24 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 23.73 | ||||
| 25 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 21.33 | |||||
| 26 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 22.92 | |||||
| 27 | W11517331 | Knob (stainless) (Replaces: W10850027) |
|
Immediately | $ 66.19 | ||||
| 28 | W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 121.04 | ||||
| 29 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 30 | W10702912 | Gasket, Switch Stem |
|
$ 29.82 | |||||
| W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 251.88 | |||||
| W11676965 | Quick Start Guide |
|
- | ||||||
| 7111P01760 | Clamp, Wire |
|
- | ||||||
| W10547961 | Bracket, Console (right) |
|
$ 23.22 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10664316 | Clip, Harness (cooktop) |
|
Immediately | $ 20.97 | |||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| W10894124 | Console, Lower Panel (black) (Replaces: W10816943) |
|
$ 560.36 | ||||||
| W11766509 | Harness, Main (Replaces: W11648717) |
|
- | ||||||
| W11652306 | Owners Manual |
|
- | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 78.59 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11508781 | Tech Sheet |
|
- | ||||||
| W11171886 | Harness, Cooktop |
|
Immediately | $ 226.60 | |||||
| W11314385 | Harness, Console (Replaces: W11226230) |
|
Immediately | $ 207.53 | |||||
| W10814303 | Support, Cooktop (left) |
|
- |
