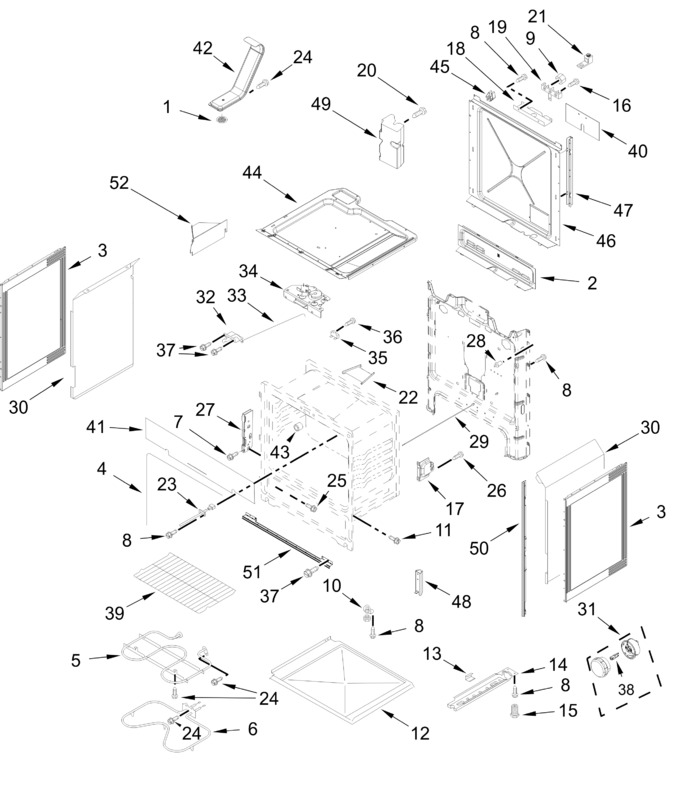

| 1 | W11268772 | Screen, Vent (Replaces: W11092984) |
|
Immediately | $ 218.56 | ||||
| 2 | W10162248 | Cover, Wire |
|
$ 148.19 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| 4 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 50.20 | ||||
| 5 | WPW10583047 | Element, Broil (Replaces: W10583047) |
|
Immediately | $ 159.11 | ||||
| 6 | W11447783 | Bake, Element (Replaces: W10535148) |
|
Immediately | $ 90.38 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 9 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 10 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 12 | W10312471 | Tray, Insulation |
|
$ 72.08 | |||||
| 13 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 14 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 15 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 16 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 17 | W10404688 | Bracket, Oven Support (Replaces: W10355173) |
|
$ 17.69 | |||||
| 18 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 19 | WPW10245259 | Block, Terminal (with Strap) (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 20 | W11135756 | Screw (Replaces: W11034869) |
|
$ 14.73 | |||||
| 21 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| 22 | W10853401 | Baffle, Upper Chassis |
|
- | |||||
| 23 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 159.67 | ||||
| 24 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 25 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 26 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 27 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 28 | W11620712 | Switch, Door (Replaces: W11511828) |
|
$ 46.31 | |||||
| 29 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 30 | W11379943 | Retainer, Insulation (right) |
|
- | |||||
| 31 | W11594170 | Light Assembly (Replaces: W11544377) |
|
Immediately | $ 37.99 | ||||
| 32 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 256.36 | |||||
| 33 | W10078370 | Rod, Push Latch |
|
$ 95.24 | |||||
| 34 | WPW10107820 | Rear Door Latch Assembly (Replaces: W10107820) |
|
$ 309.55 | |||||
| 35 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 36 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 37 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 38 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 39 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 57.99 | ||||
| 40 | W10655441 | Shield, Power Cord |
|
$ 144.36 | |||||
| 41 | W11688573 | Chassis, Upper Insulation (Replaces: W10848443) |
|
$ 34.04 | |||||
| 42 | W11122085 | Flue, Assembly |
|
$ 118.38 | |||||
| 43 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 44 | W10814301 | Support, Upper Chassis |
|
- | |||||
| 45 | W11769891 | Clip-panel, Ratcheting (Replaces: W10866583) |
|
$ 10.63 | |||||
| 46 | W11379354 | Cover, Back |
|
Immediately | $ 77.79 | ||||
| 47 | W10162241 | Channel, Rear |
|
$ 37.56 | |||||
| 48 | W11312197 | Bracket, Reinforcing (Replaces: W11181076) |
|
- | |||||
| 49 | W11217187 | Counterweight (Replaces: W10914589) |
|
$ 33.95 | |||||
| 50 | W11594272 | Barrier Rail, Rubber (front Left) (Replaces: W11510563) |
|
- | |||||
| 51 | W11464547 | Bracket, Front Frame |
|
$ 45.89 | |||||
| 52 | W10818358 | Shield, Wire |
|
- | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11594273 | Barrier Rail, Rubber (front Right) (Replaces: W11510564) |
|
- | ||||||
| W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | ||||||
| W11379353 | Retainer, Insulation (left) |
|
- | ||||||
| W11684775 | Insulation, Wrap (Replaces: W10830993) |
|
- | ||||||
| W11688416 | Insulation, Back (Replaces: W10815385) |
|
- |
