01 - Cover Sheet

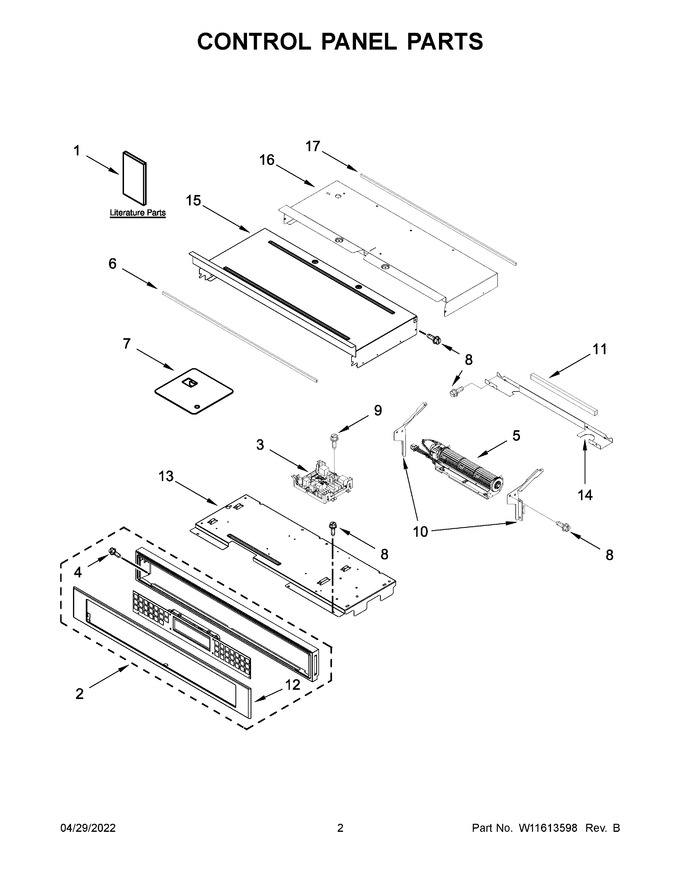

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11340821 | Owner's Manual |
|
- | |||||
| 2 | W11600652 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W11304102) |
|
$ 946.18 | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (Replaces: W11249218) |
|
Immediately | $ 325.47 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 6 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 7 | W11819353 | Cover, Wifi (Replaces: W11308343) |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | 7101P43460 | Screw |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10588746 | Skin, Control Panel (white) |
|
- | |||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W11821591 | Cover, 30" Chassis Top Front (Replaces: W11244445) |
|
- | |||||
| 16 | W11223325 | Cover, 30" Chassis Top Back |
|
$ 85.77 | |||||
| 17 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12A | W10588740 | Skin, Control Panel (stainless) |
|
$ 214.05 | |||||
| 12B | W10776407 | Skin, Control Panel (black Stainless) |
|
$ 285.61 | |||||
| 1A | W11382210 | Quick Start Guide |
|
- | |||||
| 1B | W11382212 | Tech Sheet |
|
- | |||||
| 2A | W11600651 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11304093) |
|
Immediately | $ 888.24 | ||||
| 2B | W11600650 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W11304098) |
|
Immediately | $ 947.16 | ||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W11607072 | Bag, Hardware (Replaces: W11547720) |
|
Immediately | $ 15.39 | ||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | W11759107 | Harness, Main (Replaces: W11245665) |
|
$ 242.33 | |||||
| NI | NP | Rail, Center (not Serviced) |
|
- | |||||
| NI | W11256622 | Harness, Signal |
|
$ 129.70 | |||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 32.95 | ||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 |
