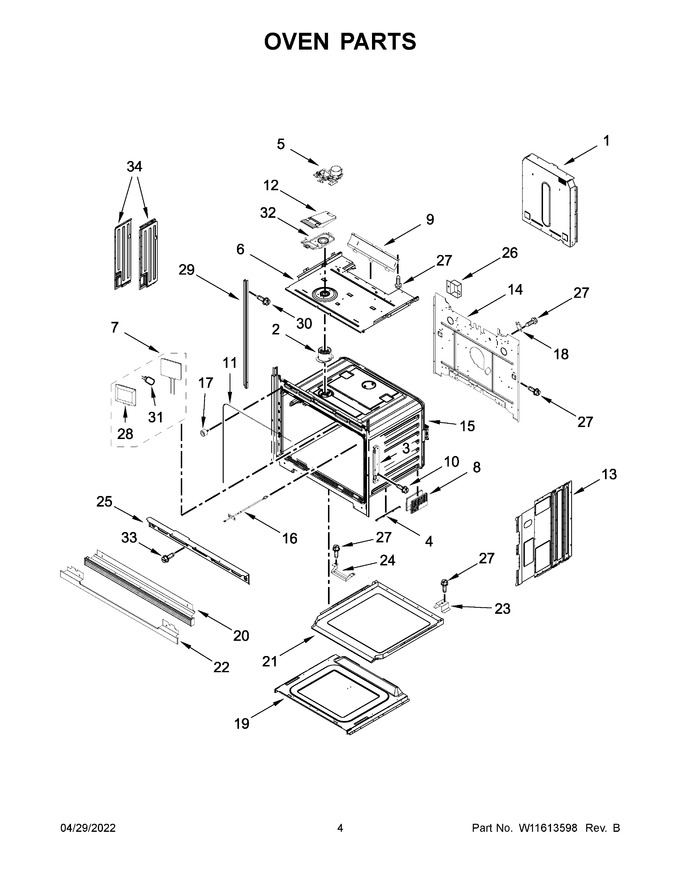

03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11165250 | Duct, Chassis Back |
|
$ 76.32 | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W11085298) |
|
$ 25.54 | |||||
| 3 | W11752201 | Receiver, Hinge (Replaces: W11100732) |
|
$ 46.56 | |||||
| 4 | W11598116 | Spacer, Base (Replaces: W11156710) |
|
$ 18.53 | |||||
| 5 | W11811612 | Latch, Motorized (Replaces: W11132456) |
|
Immediately | $ 69.86 | ||||
| 6 | W11168071 | Top, Chassis |
|
- | |||||
| 7 | W11292252 | Assembly, Oven Light (Replaces: W11205574) |
|
Immediately | $ 107.48 | ||||
| 8 | W11598170 | Foot, Base (Replaces: W11245118) |
|
$ 29.04 | |||||
| 9 | W10904163 | Deflector, Blower |
|
Immediately | $ 169.79 | ||||
| 10 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| 11 | W11676903 | Gasket (Replaces: W11262567) |
|
Immediately | $ 72.57 | ||||
| 12 | W11256424 | Cover, Vent Exhaust |
|
- | |||||
| 13 | W11165274 | Side, Chassis |
|
$ 80.99 | |||||
| 14 | W11223327 | Back, Chassis |
|
- | |||||
| 15 | NP | Rail, Center (not Serviced) |
|
- | |||||
| 16 | W11598120 | Probe, Sensor (Replaces: W11346074) |
|
Immediately | $ 41.75 | ||||
| 17 | W11598125 | Bumper & Screw (Replaces: W11166315) |
|
$ 23.37 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W11598115 | Base, Chassis (Replaces: W11135103) |
|
$ 75.86 | |||||
| 20 | W11369885 | Assembly, Bottom Vent (white) |
|
Immediately | $ 254.92 | ||||
| 21 | W11244446 | Duct, Bottom Chassis |
|
$ 70.25 | |||||
| 22 | W11598135 | Trim, Bottom Vent (black) (Replaces: W11356753) |
|
Immediately | $ 76.24 | ||||
| 23 | W11135135 | Support, Air Channel |
|
$ 36.15 | |||||
| 24 | W11731183 | Spacer, Chassis Bottom Duct (Replaces: W11390667) |
|
$ 38.85 | |||||
| 25 | W11715951 | Vent, Top 30 (Replaces: W11334857) |
|
$ 103.40 | |||||
| 26 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 27 | 7101P42660 | Screw |
|
- | |||||
| 28 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 96.33 | |||||
| 29 | W11235463 | Cover, Side Trim (black (left)) |
|
$ 88.77 | |||||
| 30 | W11602623 | Screw (Replaces: W11404000) |
|
$ 14.23 | |||||
| 31 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 92.48 | ||||
| 32 | W11256423 | Base, Vent Exhaust |
|
- | |||||
| 33 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 7.55 | ||||
| 34 | W11598150 | Cover, Suction (left) (Replaces: W11167419) |
|
$ 74.06 | |||||
| 20A | W11598202 | Assembly, Bottom Vent (stainless) (Replaces: W11369882) |
|
Immediately | $ 202.16 | ||||
| 20B | W11369884 | Assembly, Bottom Vent (black) |
|
Immediately | $ 114.33 | ||||
| 29A | W11235462 | Cover, Side Trim (black (right)) |
|
$ 88.77 | |||||
| 34A | W11598151 | Cover, Suction (right) (Replaces: W11186675) |
|
$ 74.06 | |||||
| NI | W11688564 | Insulation, Wrap (Replaces: W11188284) |
|
- | |||||
| NI | W11602627 | Insulation, Cavity (Replaces: W11234758) |
|
$ 82.51 | |||||
| NI | NP | Rail, Center (not Serviced) |
|
- |
