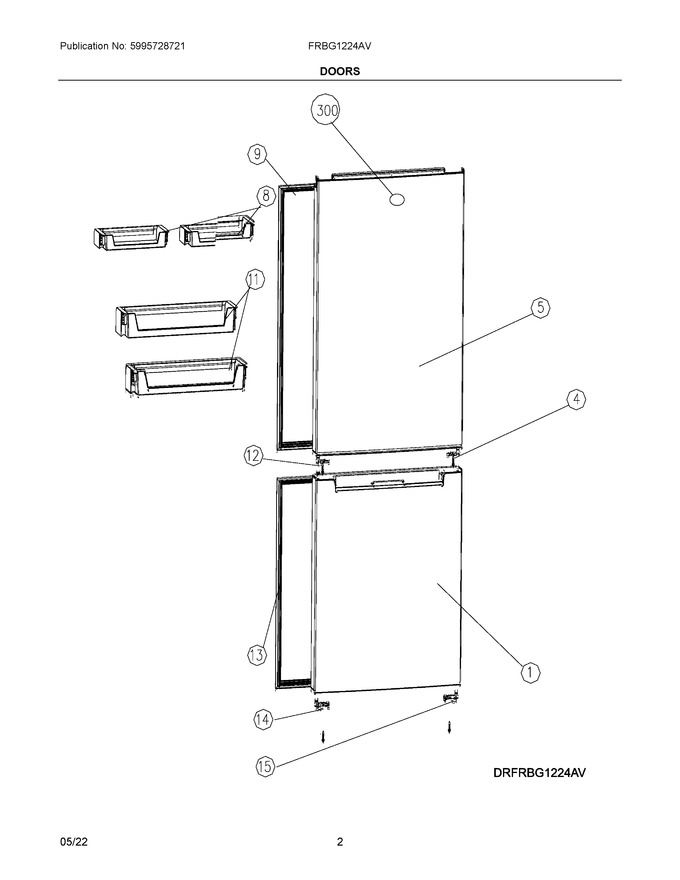

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304530290 | Door Assembly, Freezer |
|
Immediately | $ 384.45 | ||||
| 4 | 5304518477 | Door Stopper, Door, Rh Door Swing |
|
$ 23.41 | |||||
| 5 | 5304530291 | Door Assembly, Fresh Food |
|
$ 395.01 | |||||
| 8 | 5304530292 | Door Rack, Middle |
|
$ 16.38 | |||||
| 9 | 5304530293 | Gasket, Door, Fresh Food |
|
$ 82.94 | |||||
| 11 | 5304530294 | Door Rack, Lower |
|
Immediately | $ 77.59 | ||||
| 12 | 5304518553 | Door Stopper, Door, Lh Door Swing |
|
$ 62.19 | |||||
| 13 | 5304530295 | Gasket, Door, Freezer |
|
$ 72.91 | |||||
| 14 | 5304518556 | Closer, Door, Lh Door Swing |
|
$ 20.74 | |||||
| 15 | 5304518485 | Closer, Door, Rh Door Swing |
|
Immediately | $ 64.15 | ||||
| 300 | 5304518568 | Badge, Nameplate, Ss, Frigidaire |
|
Immediately | $ 80.54 |
