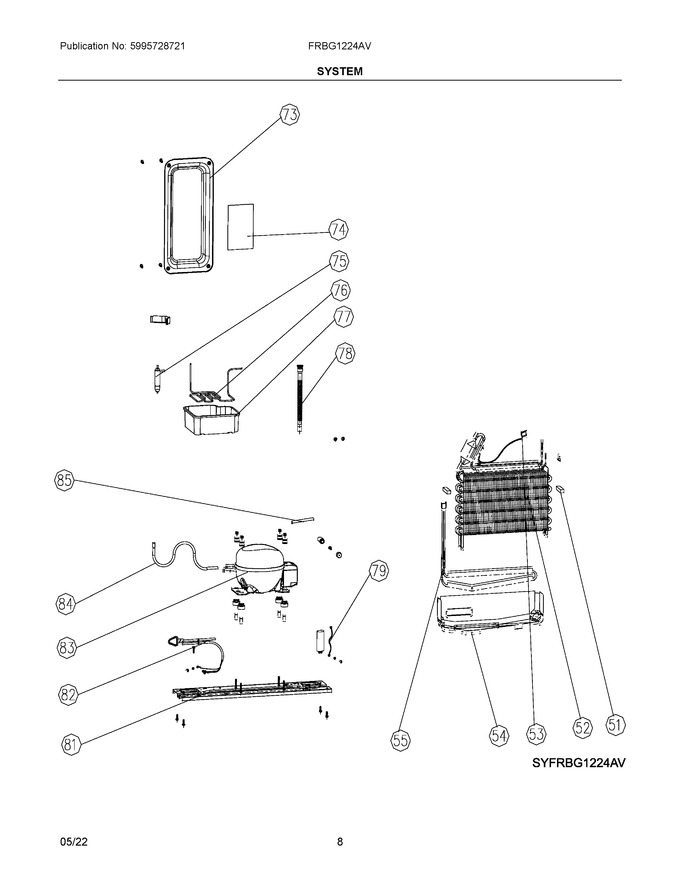

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
51	5304530309		Block, Insulation, Evaporator		Appelez-nous	-
52	5304530310		Evaporator Assembly			Immediately	$ 160.42
53	5304521879		Sensor, Air Tower			Immediately	$ 96.53
54	5304530311		Heater, Defrost				$ 81.04
55	5304530312		Trough, Drain, Evaporator				$ 141.33
73	5304530324		Cover, Control Board, Main				$ 47.58
74	5304534467		Pc Board, Control, Main   (Replaces: 5304530325)				$ 260.32
75	A19676501		Filter, Dry   (Replaces: 5304521529)			Immediately	$ 106.99
76	5304530326		Condenser, Evaporative		Appelez-nous	-
77	5304530327		Drain Pan				$ 29.34
78	5304518525		Drain Pipe				$ 29.58
79	5304518526		Wire, Grounding			Immediately	$ 33.37
81	5304530328		Support Base, Compressor		Appelez-nous	-
82	5304533014		Power Cord   (Replaces: 5304518523)			Immediately	$ 111.78
83	5304533013		Compressor   (Replaces: 5304529350)			Immediately	$ 520.72
84	5304521528		Pipe, Suction			Immediately	$ 73.84
85	5304525382		Tube, Process		Appelez-nous	-
