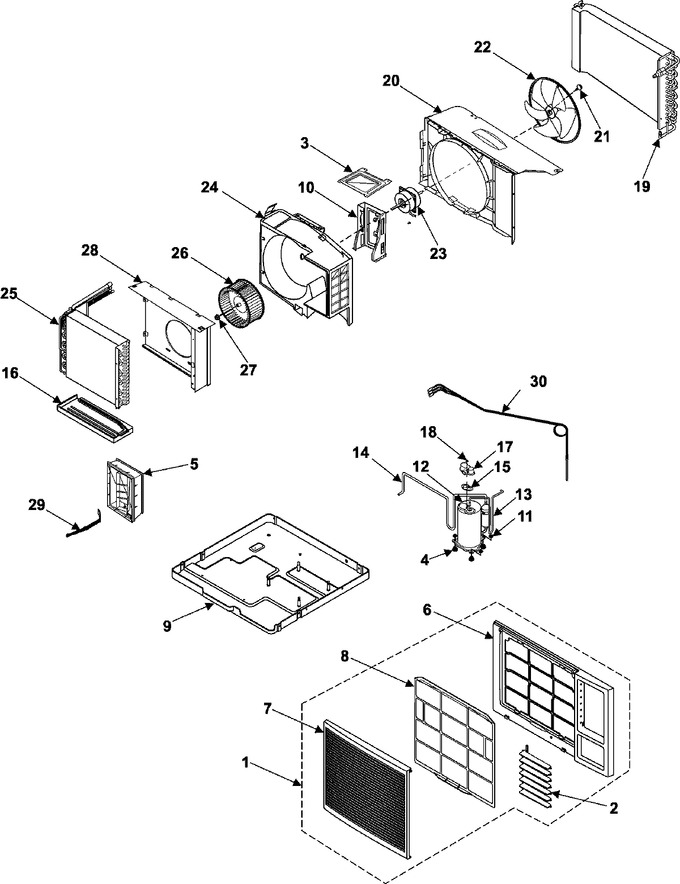

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00506B		Assy Panel Front;-,f,samsung		Appelez-nous	-
2	DB66-00493A		Blade-h;h3-p/j,pp		Appelez-nous	-
3	DB70-00342A		Plate-reinf;h3-p/j,sgcc-m,-,t0		Appelez-nous	-
4	DB73-00082A		Grommet-isolator		Appelez-nous	-
5	DB90-01219A		Assy Frame-blade;aw18f1hea/mid		Appelez-nous	-
6	DB64-00894A		Panel-front;h3-p/j,hips,-,-,-,		Appelez-nous	-
7	DB64-00895A		Grille-air Inlet;h3-p/j,hips,-		Appelez-nous	-
8	DB63-00784B		Guard-air Filter;h3-p/j,hips,-		Appelez-nous	-
9	DB90-01215B		Assy Base;h3-pjt,-		Appelez-nous	-
10	DB61-01496A		Mount-motor;h3-p/j,sgcc-m,-,-,		Appelez-nous	-
11	DB60-30028A		Nut-washer		Appelez-nous	-
12	55A240IU2EN		Rotary Compressor,24k,208-230v		Appelez-nous	-
13	DB62-02136A		Tube Discharge;h3-p/j,c1220t-0		Appelez-nous	-
14	DB62-02724A		Tube Suction		Appelez-nous	-
15	Y00000000		See Note Gasket-currently Unavailable		Appelez-nous	-
16	DB63-00783A		Tray Drain;h3-p/j,30fo-ps,t10,		Appelez-nous	-
17	Y00000000		See Note Nut-flange Currently Unavailable		Appelez-nous	-
18	Y00000000		See Note Nut-terminal Cover Currently Not Available		Appelez-nous	-
19	DB96-02954D		Assy Cond;h3-p/j,-		Appelez-nous	-
20	DB61-01495A		Case Cond;h3-p/j,pp,t2.5,-,-,-		Appelez-nous	-
21	6021-001056		Nut-hexagon Flange		Appelez-nous	-
22	DB67-00047B		Fan-propeller				$ 56.16
23	DB31-00214B		Motor Fan;ysk160-6a-1 ,24k-b,-		Appelez-nous	-
24	DB97-01959A		Assy Partition;awt18f1hea/mid,		Appelez-nous	-
25	DB96-03108A		Assy Evap;h3-p/j,9.52-4x15x360		Appelez-nous	-
26	DB67-00344A		Blower;h3-p/j,abs,244,-,-,-		Appelez-nous	-
27	DB60-30028A		Nut-washer		Appelez-nous	-
28	DB90-01220A		Assy-plate Evap Casing;awt18f1		Appelez-nous	-
29	DB66-00492A		Lever-damper		Appelez-nous	-
30	DB96-03400B		Assy Tube Capillary;h3-p/j,24k		Appelez-nous	-
