01 - Chassis Assembly

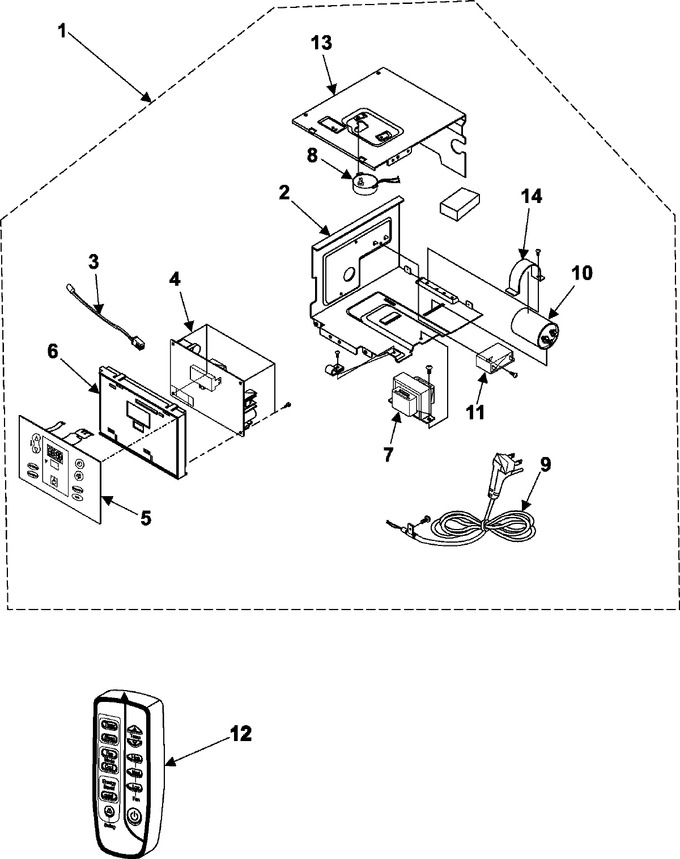

02 - Control Assembly


03 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB93-02633C		Assy Control-box		Appelez-nous	-
2	DB61-00417A		Case Control-low		Appelez-nous	-
3	DB32-10051E		Thermistor				$ 48.91
4	DB93-02478G		Assy Pcb Main;h3 Side,sam S		Appelez-nous	-
5	DB34-00034A		Switch Membrane;-,-,-,pe,sea,-		Appelez-nous	-
6	DB64-01086A		Panel Control;h3-p/j Side Ge,a		Appelez-nous	-
7	DB26-00006K		Trans L.v-power;-,ac230v,50/60				$ 89.92
8	DB31-00084B		Motor-synchronous		Appelez-nous	-
9	DB39-00200B		Power Cord-assy		Appelez-nous	-
10	2301-001449		C-film,mpe-ppf		Appelez-nous	-
11	2501-001238		Capacitor (oil)		Appelez-nous	-
12	DB93-01364Y		Assy Remocon		Appelez-nous	-
13	DB61-01492A		Case Control-up;h3-p/j,sgcc-m,		Appelez-nous	-
14	DB65-10008B		Clip-capacitor		Appelez-nous	-
