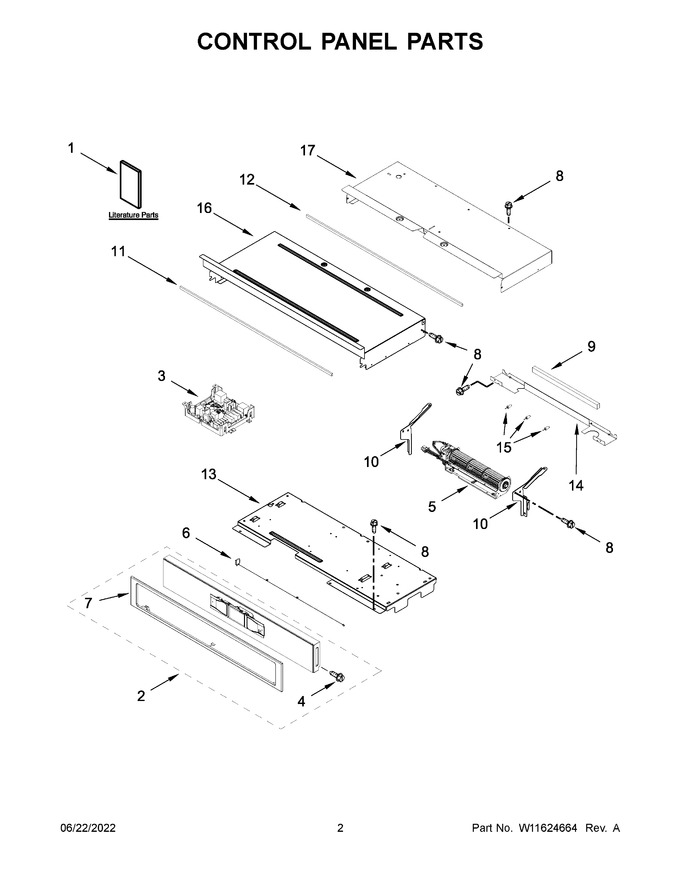

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11340821		Owner's Manual		Appelez-nous	-
2	W11600357		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W11304439)		Appelez-nous	-
3	W11261167		Appliance Manager, Copernicus   (Replaces: W11253187)			Immediately	$ 472.23
4	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	W11537624		Antenna   (Replaces: W11409842)				$ 106.06
7	W11115276		Skin, Control Panel (black)   (Replaces: W11026968)		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W11226313		Gasket, Rubber (652mm)   (Replaces: W11162062)				$ 24.40
12	W10728475		Gasket, Rubber				$ 38.13
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W10351295		Bumper				$ 22.12
16	W11244469		Cover, Top Front 27" Chassis		Appelez-nous	-
17	W11244459		Cover, Top Back 27" Chassis		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11419188		Quick Start Guide		Appelez-nous	-
1B	W11419201		Tech Sheet		Appelez-nous	-
2A	W11600359		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W11304441)				$ 1,131.85
2B	W11600358		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11304440)		Appelez-nous	-
3A	W11261169		Manager, Appliance (without Power Supply)   (Replaces: W11253188)				$ 464.98
7A	W11200664		Skin, Control Panel (white)   (Replaces: W11026967)		Appelez-nous	-
7B	W11112611		Skin, Control Panel (stainless)   (Replaces: W10899876)		Appelez-nous	-
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11233570		Harness, Console			Immediately	$ 234.66
NI	W11245673		Harness, Main		Appelez-nous	-
NI	W10487999		Clip, Harness				$ 21.12
NI	4448664		Clamp, Conduit				$ 21.41
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11245677		Harness, Signal		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80

    View Diagram in Separate Window       Print Part List
