View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts

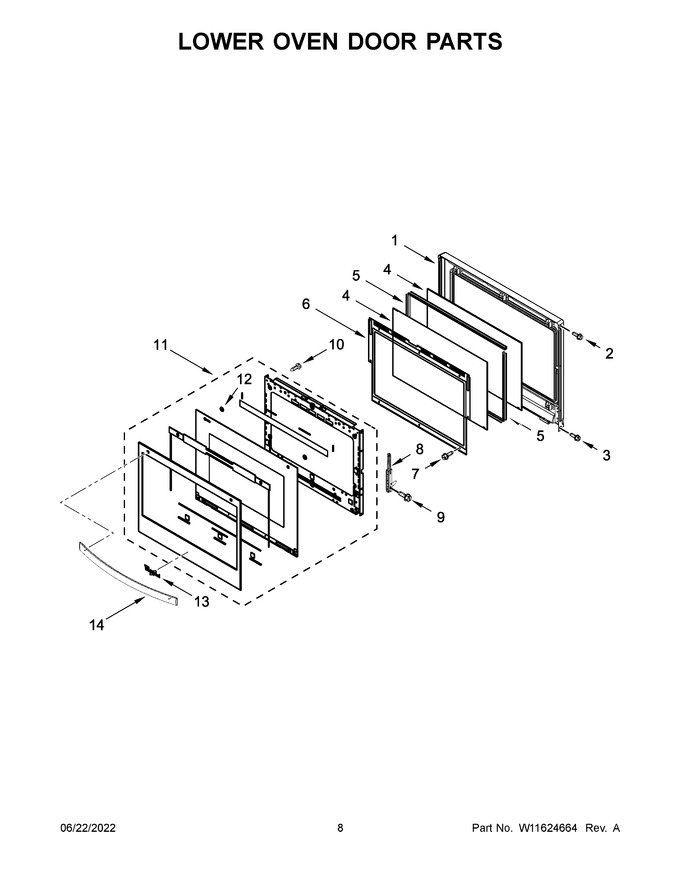

05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598186 | Liner Assembly (Replaces: W11302593) |
|
$ 371.00 | |||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 14.77 | |||||
| 4 | WPW10284902 | Glass, Inner (Replaces: W10618123) |
|
$ 229.81 | |||||
| 5 | W11736672 | Spacer, Air Divider (Replaces: W11302731) |
|
Immediately | $ 54.06 | ||||
| 6 | W11598188 | Retainer, Air Divider Glass (Replaces: W11204277) |
|
$ 81.84 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11296079 | Hinge, Door (left) |
|
- | |||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 14.75 | ||||
| 11 | W11600328 | Door Assembly (black) (Replaces: W11286345) |
|
- | |||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 13 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 14 | W11115278 | Handle Assembly (black) (Replaces: W11022641) |
|
$ 188.91 | |||||
| 11A | W11600334 | Door Assembly (white) (Replaces: W11286343) |
|
- | |||||
| 11B | W11600331 | Door Assembly (stainless) (Replaces: W11296060) |
|
$ 513.79 | |||||
| 14A | W11200667 | Handle Assembly (white) (Replaces: W11022642) |
|
- | |||||
| 14B | W11113204 | Handle Assembly (stainless) (Replaces: W10880280) |
|
$ 188.91 | |||||
| 8A | W11296080 | Hinge, Door (right) |
|
- |
