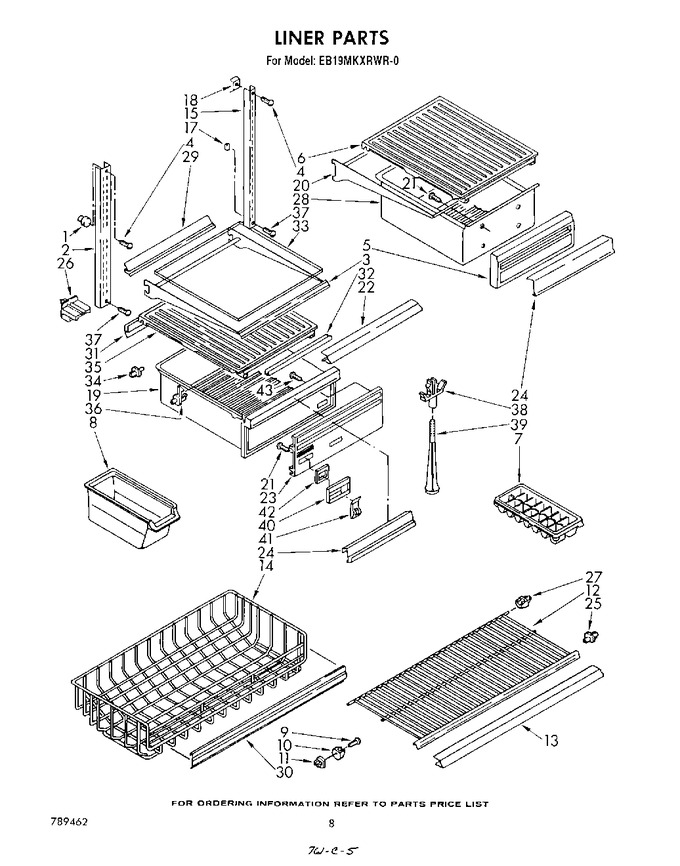

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520959		Support, Center Ladder (2)		Appelez-nous	-
2	936230		Ladder (center)		Appelez-nous	-
3	1109029		Shelf, Cantilever (3)		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
5	1109040		Front Cover, Meat Pan		Appelez-nous	-
6	1109038		Cover, Meat Pan		Appelez-nous	-
7	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
8	WP982704		Container, Utility   (Replaces: 1106048)				$ 32.55
9	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 8.28
10	1100113		Stud, Saddle (l.s.)		Appelez-nous	-
11	538449		Grommet, Screw		Appelez-nous	-
12	986809		Shelf, Freezer		Appelez-nous	-
13	985070		Trim, Shelf Front		Appelez-nous	-
14	985382		Basket, Freezer		Appelez-nous	-
15	934267		Ladder, Shelf (side) (2)		Appelez-nous	-
17	520965		Support, Side Ladders (4)				$ 31.35
18	983604		Anchor (3)		Appelez-nous	-
19	944037		Pan Crisper (2)		Appelez-nous	-
20	936770		Shelf, Cantilever (meat Pan)		Appelez-nous	-
21	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
21	488132		Screw (repair)		Appelez-nous	-
22	935223		Trim, Shelf Front		Appelez-nous	-
23	1109037		Front Cover, Crisper		Appelez-nous	-
24	984749		Overlay, Pan		Appelez-nous	-
25	529758		Stud, Shelf (2)		Appelez-nous	-
26	836412		Stud, Crisper Support (rear)		Appelez-nous	-
27	1100114		Stud, Saddle (r.s.)		Appelez-nous	-
28	849020		Pan, Meat		Appelez-nous	-
29	991328		Reflector, Cantilever Shelf		Appelez-nous	-
30	991320		Trim, Freezer Basket		Appelez-nous	-
31	943298		Crisper Gasket, Rear		Appelez-nous	-
32	942028		Crisper Gasket, Front		Appelez-nous	-
33	1109030		Glass, Cantilever Shelf		Appelez-nous	-
34	536475		Stud, Shelf (2)				$ 7.28
35	1109035		Cover, Crisper Pan (2)		Appelez-nous	-
36	836423		Stud, Shelf (2)		Appelez-nous	-
37	488960		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
37	488980		Screw (repair)		Appelez-nous	-
38	848562		Support, Cover				$ 24.30
39	836410		Post, Support Cover				$ 5.84
40	942234		Housing, Humidity Control		Appelez-nous	-
41	942235		Slide Control		Appelez-nous	-
42	942236		Seal, Control		Appelez-nous	-
43	489041		Screw, 6-19 X 7/16 (2)		Appelez-nous	-
