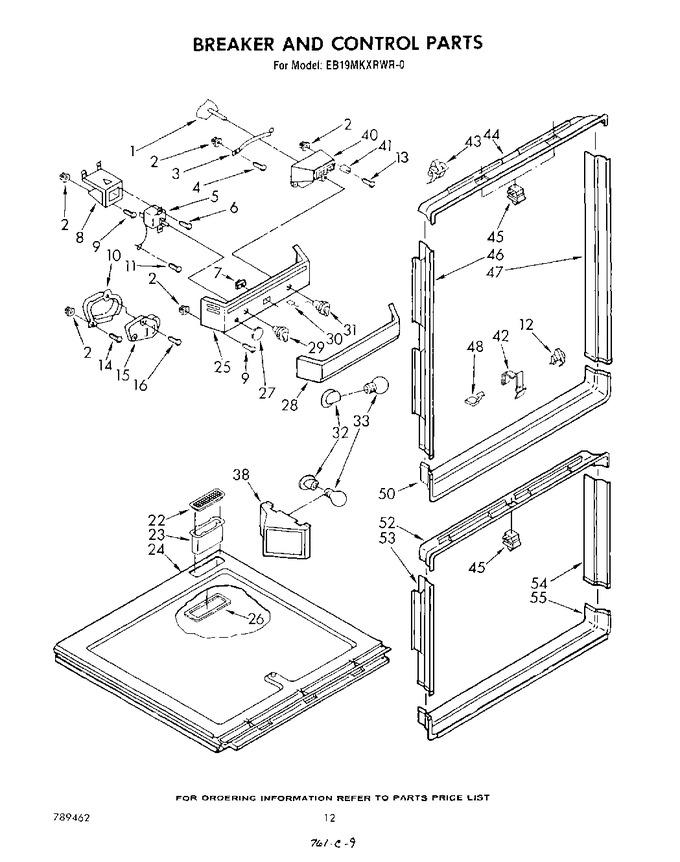

07 - Breaker And Control


08 - Unit , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	984658		Damper, Air				$ 8.39
2	842339		Grommet		Appelez-nous	-
3	836493		Retainer, Air Damper		Appelez-nous	-
4	488624		Screw, 8 X 3/8		Appelez-nous	-
5	WP4317800		Thermostat   (Replaces: 945539)			Immediately	$ 278.68
6	WP965173		Screw, 8-15 X 3/8 (2)   (Replaces: 487584)			Immediately	$ 11.87
7	938049		Toggle, Switch		Appelez-nous	-
8	848446		Bracket, Thermostat Mounting		Appelez-nous	-
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
10	983079		Container, Defrost Timer		Appelez-nous	-
11	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
12	848478		Clip, Breaker Liner (3)		Appelez-nous	-
13	488357		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
14	WP489069		Screw, 8 X 1/2 (2)   (Replaces: 488772)			Immediately	$ 8.40
15	943428		Timer, Defrost		Appelez-nous	-
16	488678		Screw, 8 X 1-3/8 (2)		Appelez-nous	-
22	987018		Grid, Insert		Appelez-nous	-
23	987019		Insert, Air Return		Appelez-nous	-
24	986026		Separator, Compartment		Appelez-nous	-
25	942214		Panel, Control		Appelez-nous	-
26	991223		Gasket		Appelez-nous	-
27	534927		Plug, Hole		Appelez-nous	-
28	983910		Shield, Light		Appelez-nous	-
29	836482		Knob, Thermostat		Appelez-nous	-
30	837444		Knob, Retainer		Appelez-nous	-
31	837445		Knob, Air Diffuser (includes Illus. 30)		Appelez-nous	-
32	4387478		Socket, Light (2)   (Replaces: 851067)			Immediately	$ 115.67
33	8009		Bulb, Light (2)   (Replaces: 527949)			Immediately	$ 18.67
38	848158		Shield, Light (freezer Compartment)		Appelez-nous	-
40	986021		Diffuser Assembly, Air		Appelez-nous	-
41	836667		Spacer (2)		Appelez-nous	-
42	939139		Breaker Clip Wrap		Appelez-nous	-
43	836090		Clip, Breaker Retainer		Appelez-nous	-
44	940920		Breaker, Refrigerator Trim (top)		Appelez-nous	-
45	W11384469		Switch, Rocker Arm (3)   (Replaces: 1108112)			Immediately	$ 39.09
46	986001		Refrigerator Trim (l.s.)		Appelez-nous	-
47	986000		Breaker, Refrigerator Trim (r.s.)		Appelez-nous	-
48	534365		Clip, Breaker Mullion (8)				$ 14.83
50	992534		Breaker, Mullion Trim (refrigerator)		Appelez-nous	-
52	841643		Breaker, Mullion Trim (freezer)		Appelez-nous	-
53	985998		Breaker, Freezer Trim (l.s.)		Appelez-nous	-
54	985997		Breaker, Freezer Trim (r.s.)		Appelez-nous	-
55	839829		Breaker, Freezer Trim (bottom)		Appelez-nous	-
