02 - Refrigerator Door
03 - Freezer Door
04 - Cabinet
05 - Liner
06 - Interior
07 - Breaker And Control
08 - Unit , Literature And Optional
SELECT A DIAGRAM
New Model Search:

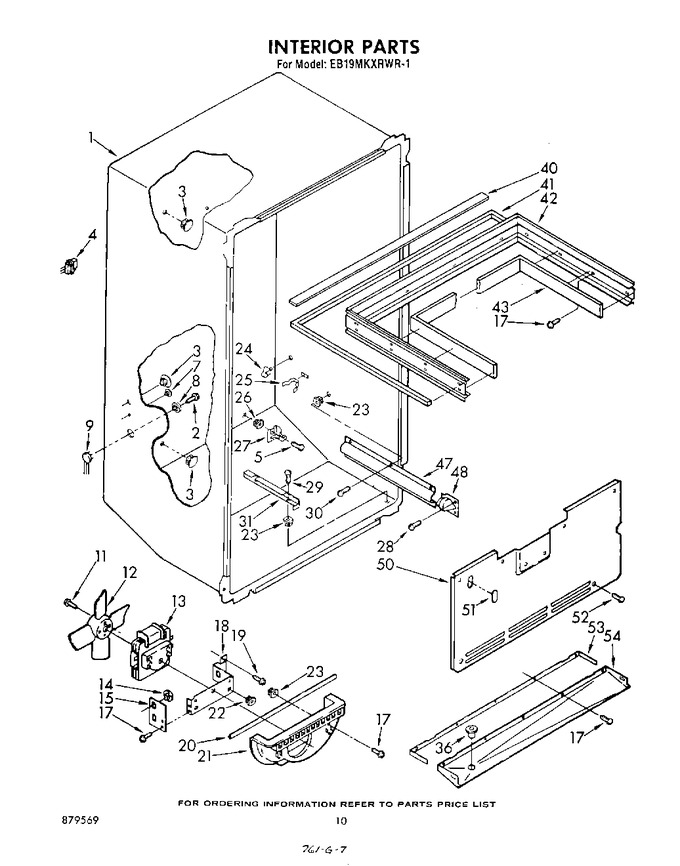

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 7.86 | ||||
| 3 | 519890 | Plug, Hole (5) |
|
- | |||||
| 4 | 481782 | Wiring, Liner (defrost Timer) |
|
- | |||||
| 5 | WP681414 | Screw, 10-12 X 3/8 (2) (Replaces: 488552) |
|
Immediately | $ 7.85 | ||||
| 7 | 659598 | Plug, Hole (2) |
|
- | |||||
| 8 | 850738 | Cap, Receptacle |
|
- | |||||
| 9 | 481658 | Wiring, Liner (ice Maker) |
|
- | |||||
| 11 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 244.80 | |||||
| 12 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 13 | SM999 | Motor, Evaporator Fan (Replaces: 987369) |
|
Immediately | $ 30.26 | ||||
| 14 | 548268 | Grommet, Fan Mounting (3) |
|
- | |||||
| 15 | 548263 | Bracket, Fan Mounting |
|
- | |||||
| 17 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 18 | 548264 | Bracket, Fan Mounting (single) |
|
- | |||||
| 19 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488772) |
|
Immediately | $ 7.86 | ||||
| 20 | 986018 | Gasket, Sealing |
|
- | |||||
| 21 | 986017 | Scroll Fan |
|
- | |||||
| 22 | 538449 | Grommet, Screw (2) |
|
- | |||||
| 23 | 842339 | Grommet |
|
- | |||||
| 24 | 839213 | Stud, Support (2) |
|
$ 295.15 | |||||
| 25 | 533998 | Speed Clip, Light Lens (3) |
|
- | |||||
| 26 | 944454 | Grommet |
|
- | |||||
| 27 | 842436 | Support, Evaporator (2) |
|
- | |||||
| 28 | WP488729 | Screw, 8 X 1/2 (2) (Replaces: 488783) |
|
Immediately | $ 7.79 | ||||
| 29 | W11693756 | Screw, 8-15 X 5/8 (4) (Replaces: 487042) |
|
Immediately | $ 14.06 | ||||
| 30 | WP488729 | Screw, 8 X 1/2 (4) (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 31 | 986383 | Slide, Basket (left Side) |
|
- | |||||
| 31 | 986382 | Slide, Basket (r.s) |
|
- | |||||
| 36 | 986661 | Fitting, Drain Pan |
|
- | |||||
| 40 | 991925 | Gasket, Sealing |
|
- | |||||
| 41 | 991280 | Gasket, Sealing |
|
- | |||||
| 42 | 986024 | Track, Compartment Separator |
|
- | |||||
| 43 | 982907 | Gasket, Sealing (2) |
|
- | |||||
| 47 | 981085 | Cover, Tube |
|
- | |||||
| 48 | 839826 | Cover, Tub Entry |
|
- | |||||
| 50 | 946122 | Cover, Evaporator |
|
- | |||||
| 51 | 659776 | Plug, Hole |
|
- | |||||
| 52 | WP488729 | Screw, 8-15 X 1/2 (6) (Replaces: 488992) |
|
Immediately | $ 7.79 | ||||
| 53 | 986660 | Gasket, Drain Pan |
|
- | |||||
| 54 | 986659 | Pan, Drain (also Includes Illus. 36) |
|
- |
