SELECT A DIAGRAM

02 - Refrigerator Door


03 - Freezer Door


04 - Cabinet


05 - Liner


06 - Interior


07 - Breaker And Control


08 - Unit , Literature And Optional

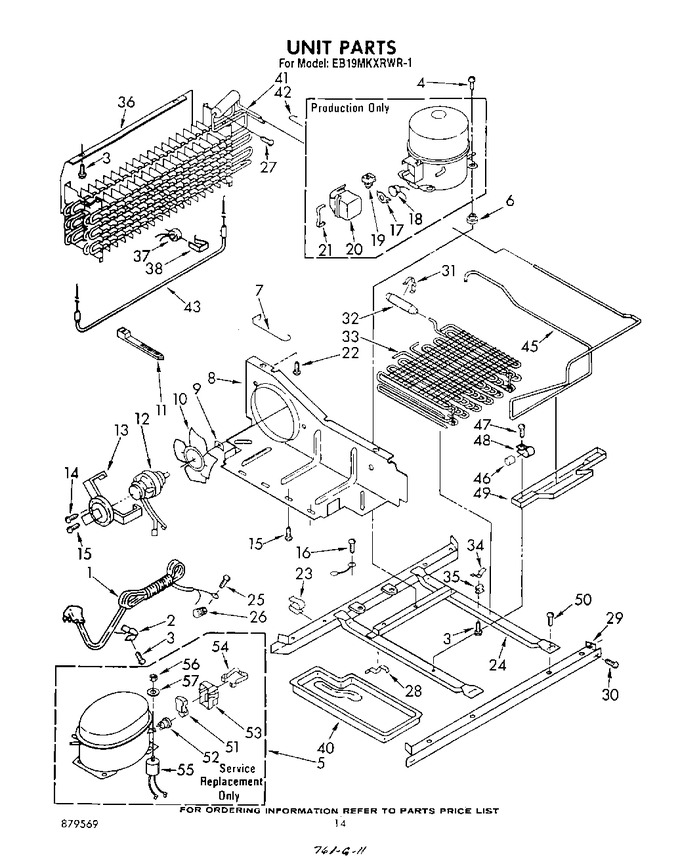

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp-service Cord				$ 13.39
3	W11624204		Screw, 1/4-28 X 1 (4)   (Replaces: 486194)				$ 14.02
4	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.42
5	482981		Compressor (includes Items 51, 52, 53, 54, 55, 56, & 57) (also Order 876765 Tube Kit)		Appelez-nous	-
6	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
7	850156		Guard, Fan		Appelez-nous	-
8	850764		Baffle, Air		Appelez-nous	-
9	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 7.82
10	989524		Blade, Fan		Appelez-nous	-
11	851095		Strap		Appelez-nous	-
12	833697		Motor, Fan   (Replaces: 946538)			Immediately	$ 88.15
13	548695		Bracket, Fan Motor		Appelez-nous	-
14	681390		Screw, 8-36 X 3/8 (3)   (Replaces: 489019)				$ 13.06
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	303776		Screw, 8-32 X 5/16 (2) (ground)   (Replaces: 488879)		Appelez-nous	-
17	943494		Overload Spring		Appelez-nous	-
18	943492		Protector, Overload		Appelez-nous	-
19	945431		Relay, Starting		Appelez-nous	-
20	943496		Case, Relay		Appelez-nous	-
21	943497		Spring, Relay Case		Appelez-nous	-
22	489050		Screw, 8-32 X 1/2 (5)				$ 692.56
23	548745		Clip, Wire (2)		Appelez-nous	-
24	945457		Frame, Unit Mounting		Appelez-nous	-
25	488474		Screw, 8-32 X 3/8		Appelez-nous	-
26	227991		Wire Connector		Appelez-nous	-
27	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
28	548744		Clip, Unit Cover (2)		Appelez-nous	-
29	548662		Rail, Unit Mounting		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp, Drier		Appelez-nous	-
32	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 52.57
33	943480		Condenser & Precooler Assembly		Appelez-nous	-
34	548738		Clamp, Mounting (4)		Appelez-nous	-
35	943447		Grommet, Mounting (4)		Appelez-nous	-
36	851763		Baffle, Air Evaporator		Appelez-nous	-
37	WP4387489		Bimetal, Defrost   (Replaces: 851890)				$ 103.80
37	WP4387489		Bimetal, Defrost (alternate)   (Replaces: 851891)				$ 103.80
38	513584		Clamp		Appelez-nous	-
40	842041		Tray, Evaporating				$ 64.92
41	945542		Evaporator		Appelez-nous	-
42	989306		Clip, Heater (2)		Appelez-nous	-
43	851765		Heater, Defrost		Appelez-nous	-
45	945545		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 21.16
48	510716		Clamp, Tube (2)		Appelez-nous	-
49	945572		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
51	1100806		Relay		Appelez-nous	-
52	1105077		Overload		Appelez-nous	-
53	1105015		Cover, Terminal		Appelez-nous	-
54	938384		Strap		Appelez-nous	-
55	482996		Capacitor		Appelez-nous	-
56	489142		Nut		Appelez-nous	-
57	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
57	489143		Washer		Appelez-nous	-
57	978026		Valve, Access (5/16``)			Immediately	$ 128.09
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 130.71
57	876764		Valve, Access(3/16``)			Immediately	$ 91.35
57	833938		Kit, Terminal Connector				$ 8.07
57	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
57	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
57	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
57	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
57	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
57	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
57	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
57	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
57	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
57	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
57	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
57	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
57	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
57	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
57	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
57	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
57	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
57	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
57	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
57	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
57	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
57	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
57	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
57	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	LIT879569		Parts List		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT945560		Service & Wiring Sheet		Appelez-nous	-
	LIT1109078		Energy Label		Appelez-nous	-
	LIT1109076		Care & Use Guide		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 89.66

    View Diagram in Separate Window       Print Part List
