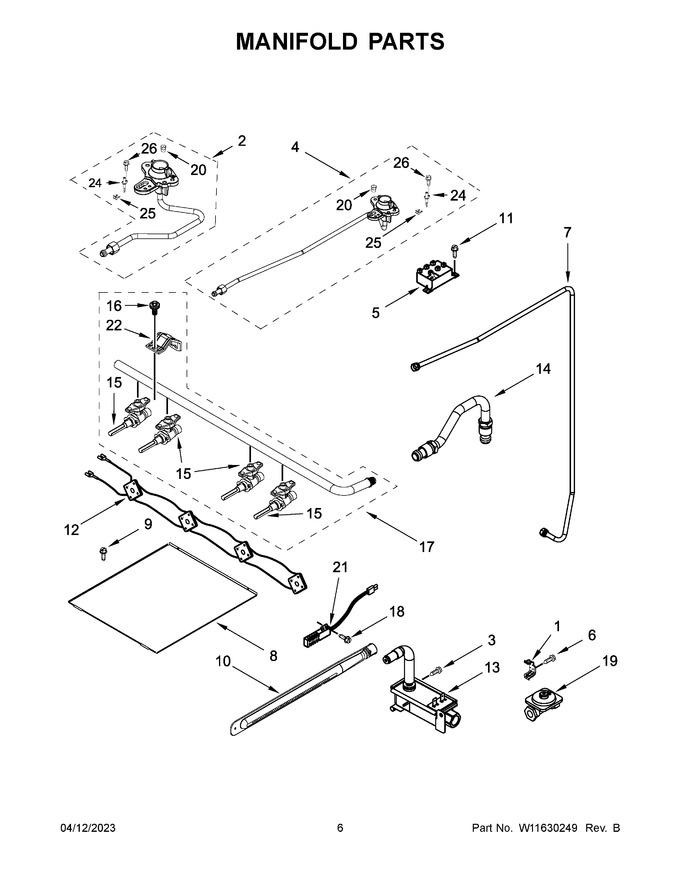

04 - Manifold Parts


05 - Chassis Parts


06 - Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98007410		Bracket, Regulator		Appelez-nous	-
2	W11590058		Assembly, Tubing (left Front)   (Replaces: W11459683)		Appelez-nous	-
3	98013634		Screw		Appelez-nous	-
4	W11590060		Assembly, Tubing (left Rear)   (Replaces: W11459685)		Appelez-nous	-
5	W11590249		Java Tech Spark Module 4 Pos   (Replaces: W11281166)				$ 24.51
6	WP98007225		Screw   (Replaces: 98007225)				$ 7.30
7	W11628651		Tube 3/8" Manifold To Reg   (Replaces: W10619922)		Appelez-nous	-
8	W11688713		Spread, Flame (bake)   (Replaces: W10670196)		Appelez-nous	-
9	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 8.18
10	W11220387		Oven Burner Asm-us Electronic   (Replaces: W10650358)				$ 198.58
11	W10837731		Screw   (Replaces: W10493726)				$ 8.30
12	W11620549		Harness, Switch   (Replaces: W11542585)		Appelez-nous	-
13	W11590251		Valve, Oven   (Replaces: W11449991)			Immediately	$ 114.48
14	W11684515		Tubing (regulator To Oven Valve)   (Replaces: W10512963)		Appelez-nous	-
15	W11620420		Valve, Saddle (left Front And Right Front)   (Replaces: W11509768)		Appelez-nous	-
16	98017517		Screw		Appelez-nous	-
17	W11509597		Assembly, Manifold		Appelez-nous	-
18	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
19	W11590292		Regulator   (Replaces: W11466755)		Appelez-nous	-
20	W11700316		Orifice (15k) (left Front And Right Front)   (Replaces: W11485872)				$ 16.73
21	W11590294		Igniter, Hot Surface   (Replaces: W11208965)		Appelez-nous	-
22	W10574737		Bracket, Valve		Appelez-nous	-
24	W11666003		Electrode (left Front, Right Front & Center)   (Replaces: W10669525)				$ 48.41
25	W11684564		Electrode, Spring (left Front, Right Front, Left Rear, Right Rear & Center)   (Replaces: W10827923)			Immediately	$ 12.65
26	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
15A	W11620109		Valve, Saddle (left Rear And Center)   (Replaces: W11509767)		Appelez-nous	-
15B	W11620424		Valve, Saddle (right Rear)   (Replaces: W11509766)		Appelez-nous	-
20A	W11590293		Orifice, Natural (9.5k) (left Rear)   (Replaces: W11548158)		Appelez-nous	-
20B	W11712434		Orifice (5k) (right Rear)   (Replaces: W11485871)				$ 16.73
24A	W11688146		Electrode (left Rear, Right Rear)   (Replaces: W10876260)				$ 29.89
2A	W11590059		Assembly, Tubing (right Front)   (Replaces: W11459686)		Appelez-nous	-
4A	W11590248		Assembly, Tubing (right Rear)   (Replaces: W11459684)		Appelez-nous	-
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
NI	W11620555		Kit, Lp Conversion   (Replaces: W11557997)				$ 39.40
