View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Broiler Parts
07 - Door Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

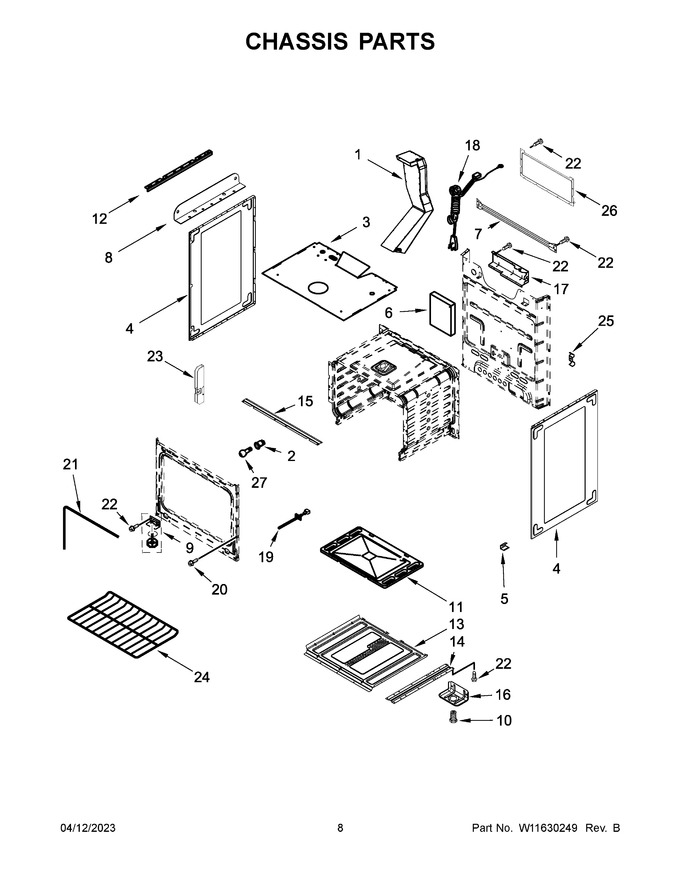

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10675411 | Box, Flue |
|
- | |||||
| 2 | W10856866 | Socket - Oven Light (Replaces: W10554269) |
|
$ 7.55 | |||||
| 3 | W11319572 | Shield, Insulation (Replaces: W10164110) |
|
- | |||||
| 4 | W10816993 | Panel, Side (black (left)) (Replaces: W10666212) |
|
- | |||||
| 5 | 98005502 | Clip, Oven Botton |
|
$ 14.11 | |||||
| 6 | W11173320 | Counterweight (Replaces: W10902689) |
|
- | |||||
| 7 | 98015363 | Support, Rear |
|
$ 85.97 | |||||
| 8 | W10532560 | Side Panel, Support |
|
- | |||||
| 9 | W10819918 | Foot Leveling & Foot Base (front) (Replaces: W10650383) |
|
- | |||||
| 10 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 11 | W11098799 | Assembly, Oven Bottom (Replaces: W10620410) |
|
$ 189.05 | |||||
| 12 | W10577312 | Support, Side Panel |
|
- | |||||
| 13 | W10670197 | Deflector, Oven |
|
- | |||||
| 14 | W10520269 | Rail, Base |
|
- | |||||
| 15 | W10545322 | Bracket, Manifold |
|
- | |||||
| 16 | W11770643 | Bracket, Foot (Replaces: W11172758) |
|
- | |||||
| 17 | W10549293 | Safety Valve, Rear Cover |
|
- | |||||
| 18 | W11173616 | Cord, Power (Replaces: W10640762) |
|
- | |||||
| 19 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 20 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 18.60 | |||||
| 21 | WPW10535778 | Seal, Oven (Replaces: W10535778) |
|
$ 87.71 | |||||
| 22 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 23 | W11161898 | Counter Support-hinge (Replaces: W10327222) |
|
- | |||||
| 24 | WPW10550642 | Rack, Oven (Replaces: W10550642) |
|
$ 110.82 | |||||
| 25 | W11510655 | Clip, Tubing |
|
- | |||||
| 26 | W11492823 | Cover |
|
- | |||||
| 27 | W10888179 | Bulb, Light (Replaces: W10788320) |
|
$ 69.81 | |||||
| 4A | W10816993 | Panel, Side (black (right)) (Replaces: W10666211) |
|
- | |||||
| NI | W11688850 | Insulation, Upper (Replaces: W10613818) |
|
- | |||||
| NI | W11506534 | Insulation,flue |
|
- | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W10537475 | Insulation, Back (Replaces: W11048974) |
|
- | |||||
| NI | W11688783 | Insulation (Replaces: W10212526) |
|
$ 91.34 | |||||
| NI | 98004294 | Wire Tie, Insulation |
|
- | |||||
| NI | W11492324 | Wrapper Oven Cavity Insulation (Replaces: W11130754) |
|
- |
