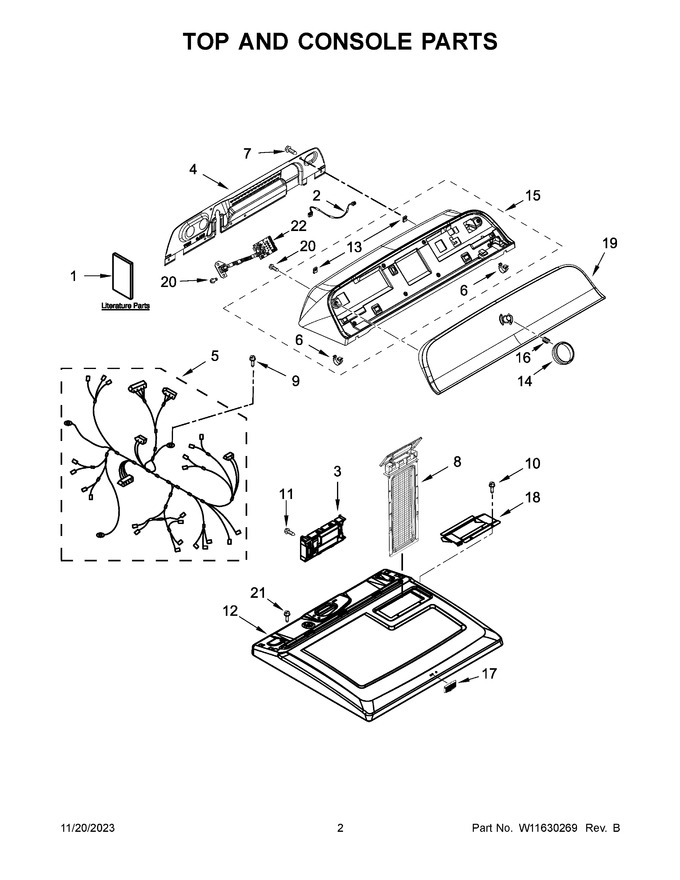

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11361424		Owners Manual		Appelez-nous	-
2	W11551859		Hmi Harness				$ 30.82
3	W11723616		Appliance Control Unit (acu)   (Replaces: W11578597)				$ 332.00
4	W10775189		Panel, Rear				$ 390.13
5	W11591404		Harness, Main   (Replaces: W11448302)				$ 201.51
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
8	W11778254		Lint Screen (white)   (Replaces: W11538108)			Immediately	$ 54.63
9	W10850756		Screw   (Replaces: W10773242)				$ 8.20
10	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
11	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 196.23
13	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
14	W11675852		Knob, Large   (Replaces: W11328381)			Immediately	$ 29.75
15	W11406485		Assembly, Console (white)			Immediately	$ 374.27
16	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
17	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
18	W10662472		Collar, Lint Chute				$ 77.87
19	W11565155		Assembly, Fascia (white)			Immediately	$ 197.87
20	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
21	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
22	W11627521		Encoder, Mega Assembly   (Replaces: W11557403)			Immediately	$ 323.41
12A	W11633116		Top (black)   (Replaces: W11564863)				$ 286.88
15A	W11564427		Assembly, Console (gray)				$ 218.26
19A	W11564422		Assembly, Fascia (gray)			Immediately	$ 198.14
1A	W11565129		Tech Sheet		Appelez-nous	-
1B	W11565099		Quick Start Guide		Appelez-nous	-
8A	W11633115		Lint Screen (gray)   (Replaces: W11564882)				$ 80.23
