01 - Cover Sheet
02 - Top And Console Parts

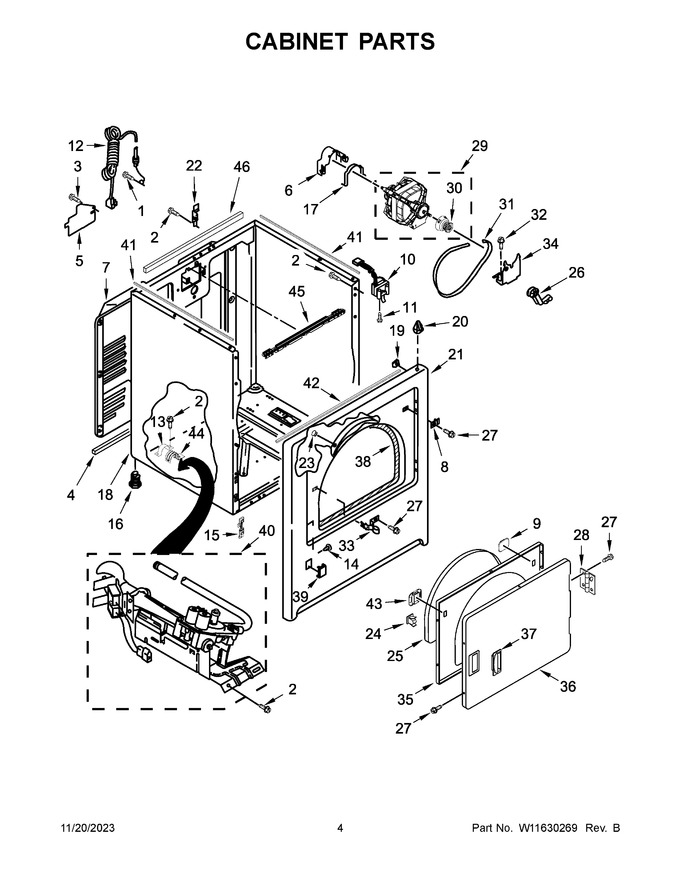

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 2 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W11596046 | Seal, Spill Guard (Replaces: W10841728) |
|
Immediately | $ 54.09 | ||||
| 5 | W11736322 | Cover, Terminal Block (Replaces: 8558833) |
|
- | |||||
| 6 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 7 | W11708115 | Panel, Rear (Replaces: W11593118) |
|
$ 181.67 | |||||
| 8 | W11684591 | Plug, Strike (Replaces: W10567345) |
|
Immediately | $ 8.13 | ||||
| 9 | W11173656 | Cover, Door Catch (Replaces: W10529198) |
|
$ 8.20 | |||||
| 10 | WP3406107 | Switch, Door (Replaces: W10569603) |
|
Immediately | $ 31.20 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 12 | W11222083 | Cord, Power (Replaces: W10869141) |
|
$ 126.62 | |||||
| 13 | 341029 | Clamp, Pipe |
|
- | |||||
| 14 | W11481394 | Hinge Hole Cover (white) (Replaces: W11308618) |
|
$ 22.39 | |||||
| 15 | W10854425 | Clip, Front Panel (Replaces: W10775448) |
|
Immediately | $ 16.34 | ||||
| 16 | W11025920 | Foot, Dryer (Replaces: W10779369) |
|
Immediately | $ 24.69 | ||||
| 17 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 20.48 | ||||
| 21 | W10248059 | Panel, Front (white) (Replaces: W10664698) |
|
$ 404.96 | |||||
| 22 | W11715722 | Hinge, Top (Replaces: W10641296) |
|
$ 8.19 | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | W11429587 | Assembly, Door Catch (Replaces: W11224630) |
|
Immediately | $ 26.55 | ||||
| 25 | W10861521 | Seal, Door (Replaces: W10730752) |
|
Immediately | $ 58.69 | ||||
| 26 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 27 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 28 | WPW10362431 | Assembly, Hinge And Pin (white) (Replaces: W10362431) |
|
Immediately | $ 8.28 | ||||
| 29 | 279827 | Assembly, Motor (Replaces: W10396029) |
|
Immediately | $ 191.95 | ||||
| 30 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 31 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 32 | 3400500 | Bolt |
|
Immediately | $ 14.04 | ||||
| 33 | W11429589 | Strike, Door (Replaces: W11224633) |
|
Immediately | $ 20.99 | ||||
| 34 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 35 | WPW10463967 | Door, Inner (Replaces: W10463967) |
|
$ 230.70 | |||||
| 36 | W10861224 | Door, Front (white) (Replaces: W10714510) |
|
$ 269.02 | |||||
| 37 | W10861225 | Handle, Door (white) (Replaces: W10714516) |
|
Immediately | $ 54.26 | ||||
| 38 | W11035878 | Assembly, Seal And Bearing (Replaces: W10803476) |
|
Immediately | $ 78.78 | ||||
| 39 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 16.50 | |||||
| 40 | W10823508 | Burner Assembly (60 Hz) (type 1) (white Rodgers) (Replaces: 8318272) |
|
$ 541.24 | |||||
| 41 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 8.45 | ||||
| 42 | W10316619 | Seal, Spill Guard |
|
$ 28.21 | |||||
| 43 | WPW10529197 | Bezel, Door Catch (Replaces: W10529197) |
|
Immediately | $ 25.46 | ||||
| 44 | W10727507 | Clamp, Pipe |
|
- | |||||
| 45 | W10641295 | Bracket, Rear |
|
$ 41.90 | |||||
| 46 | W10685675 | Seal, Rear Panel |
|
$ 19.85 | |||||
| 14A | W11633117 | Hinge Hole Cover (black) (Replaces: W11564873) |
|
- | |||||
| 18A | W11564800 | Cabinet (black) |
|
$ 545.29 | |||||
| 21A | W11633283 | Panel, Front (black) (Replaces: W11564867) |
|
$ 257.19 | |||||
| 28A | W11633119 | Assembly, Hinge And Pin (black) (Replaces: W11555347) |
|
Immediately | $ 59.61 | ||||
| 36A | W11633313 | Door, Outer (black) (Replaces: W11564870) |
|
$ 340.35 | |||||
| 37A | W11633280 | Handle, Door (black) (Replaces: W11564880) |
|
$ 19.79 | |||||
| 39A | W11564884 | Plug, Front Panel (black) |
|
- |
