Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10873109 Endcap (left Hand) (black) Appelez-nous -
2 W10588614 Backguard, Rear   (Replaces: W10535808) Appelez-nous -
3 W11233072 Screw   (Replaces: 98006632) In-Stock Immediately $ 14.72

4 W11620706 Console, Assembly (stainless With Overlay)   (Replaces: W11488008) Appelez-nous -
5 W11838712 Control, Electronic (black)   (Replaces: W11520704) In-Stock Immediately $ 281.07

6 W10535746 Bracket, Console Mount Appelez-nous -
7 WP98008545 Screw (black)   (Replaces: 98008545) Special Order $ 18.60

8 W11620514 Bracket, Control   (Replaces: W11462420) Appelez-nous -
9 W10535815 Bracket, Rear Appelez-nous -
10 W10837731 Screw   (Replaces: W10493726) Special Order $ 8.30

1A W10873107 Endcap (right Hand) (black) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

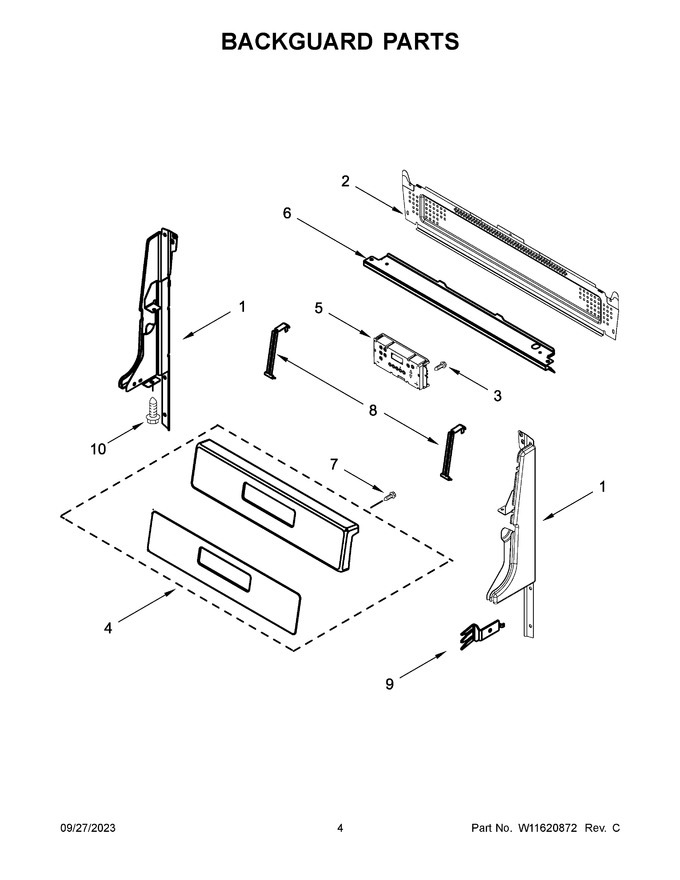

Diagram for WFG505M0MS0
