Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 98007410 Bracket, Regulator Appelez-nous -
2 W11590058 Assembly, Tubing (left Front)   (Replaces: W11459683) Appelez-nous -
3 W11495381 Assembly, Tubing (center) Appelez-nous -
4 W11590060 Assembly, Tubing (left Rear)   (Replaces: W11459685) Appelez-nous -
5 W11565127 Spark Module   (Replaces: W11281168) Special Order $ 232.70

6 WP98007225 Screw   (Replaces: 98007225) Special Order $ 7.30

7 W11628651 Tube 3/8" Manifold To Reg   (Replaces: W10619922) Appelez-nous -
8 W11688713 Spread, Flame (bake)   (Replaces: W10670196) Appelez-nous -
9 WP3400832 Screw (black)   (Replaces: 98006726) In-Stock Immediately $ 8.18

10 W11220387 Oven Burner Asm-us Electronic   (Replaces: W10650358) Special Order $ 198.58

11 W10837731 Screw   (Replaces: W10493726) Special Order $ 8.30

12 W11620480 Harness, Switch   (Replaces: W11542590) Appelez-nous -
13 W11590251 Valve, Oven   (Replaces: W11449991) In-Stock Immediately $ 114.48

14 W11676351 Screw   (Replaces: 98005659) Appelez-nous -
15 W11620420 Valve, Saddle (left Front And Right Front)   (Replaces: W11509768) Appelez-nous -
16 98017517 Screw Appelez-nous -
17 W11509588 Assembly, Manifold Appelez-nous -
18 98013634 Screw Appelez-nous -
19 W11590292 Regulator   (Replaces: W11466755) Appelez-nous -
20 W11700316 Orifice (15k) (left Front And Right Front)   (Replaces: W11485872) Special Order $ 16.73

21 W11590294 Igniter, Hot Surface   (Replaces: W11208965) Appelez-nous -
22 W10574737 Bracket, Valve Appelez-nous -
23 W11684515 Tubing (regulator To Oven Valve)   (Replaces: W10512963) Appelez-nous -
24 W11666003 Electrode (left Front, Right Front & Center)   (Replaces: W10669525) Special Order $ 48.41

25 W11684564 Electrode, Spring (left Front, Right Front, Left Rear, Right Rear And Center)   (Replaces: W10827923) In-Stock Immediately $ 12.65

26 W11241230 Screw   (Replaces: W10673618) In-Stock Immediately $ 14.73

15A W11620109 Valve, Saddle (left Rear And Center)   (Replaces: W11509767) Appelez-nous -
15B W11620424 Valve, Saddle (right Rear)   (Replaces: W11509766) Appelez-nous -
20A W11620473 Orifice (8k) (center)   (Replaces: W11498976) Appelez-nous -
20B W11590293 Orifice, Natural (9.5k) (left Rear)   (Replaces: W11548158) Appelez-nous -
20C W11712434 Orifice (5k) (right Rear)   (Replaces: W11485871) Special Order $ 16.73

24A W11688146 Electrode (left Rear, Right Rear)   (Replaces: W10876260) Special Order $ 29.89

2A W11590059 Assembly, Tubing (right Front)   (Replaces: W11459686) Appelez-nous -
4A W11590248 Assembly, Tubing (right Rear)   (Replaces: W11459684) Appelez-nous -
NI ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
NI W11630808 Kit, Lp Conversion   (Replaces: W11517377) Special Order $ 40.73

NI NP Cabinet (not Serviced) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

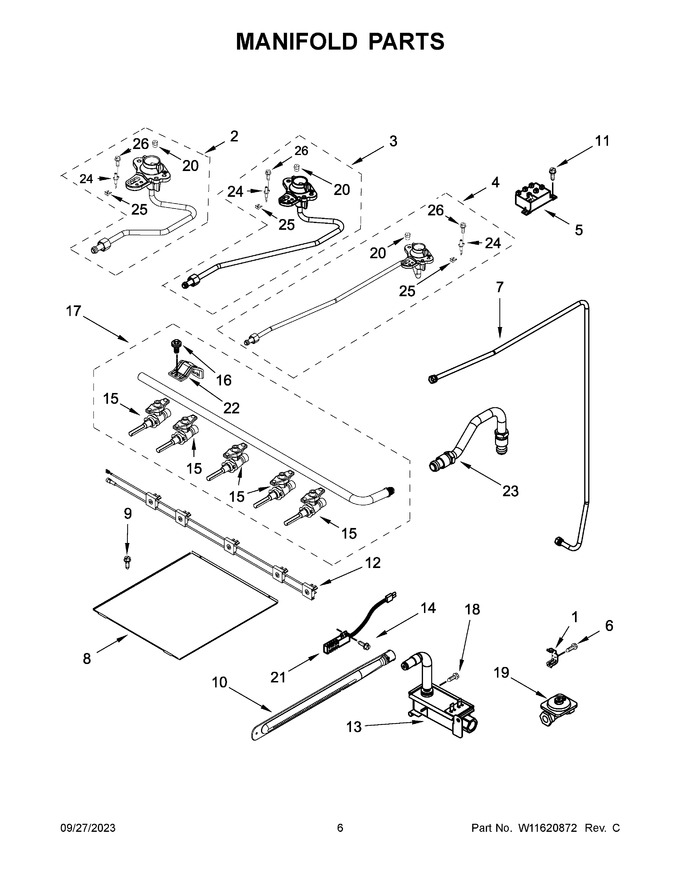

Diagram for WFG505M0MS0
