01 - Cover Sheet
02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Broiler Parts
07 - Door Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

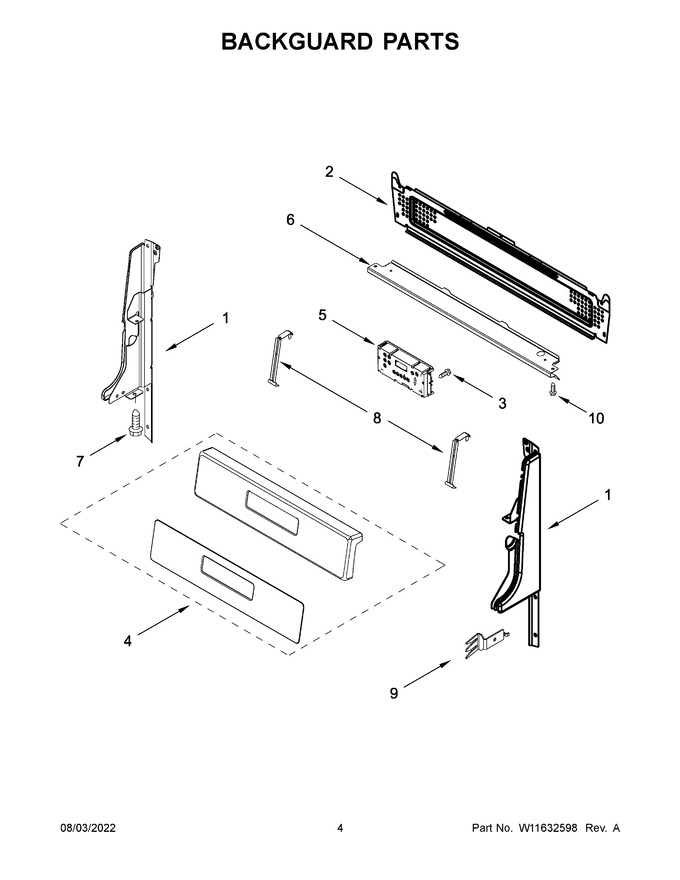

| 1 | W10873109 | Endcap (left Hand) (black) |
|
- | |||||
| 2 | W10588614 | Backguard, Rear |
|
- | |||||
| 3 | W10850756 | Screw, Ground (Replaces: 8534079) |
|
$ 8.20 | |||||
| 4 | W11620709 | Console, Assembly (stainless With Overlay (stainless Model)) (Replaces: W11498393) |
|
- | |||||
| 5 | W11805542 | Control, Electronic (black) (Replaces: W11520703) |
|
- | |||||
| 6 | W10535746 | Bracket, Console Mount |
|
- | |||||
| 7 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 8 | W11620514 | Bracket, Control (Replaces: W11462420) |
|
- | |||||
| 9 | W10535815 | Bracket, Rear |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 14.72 | ||||
| 1A | W10873107 | Endcap (right Hand) (black) |
|
- |
