01 - Cover Sheet
02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Broiler Parts

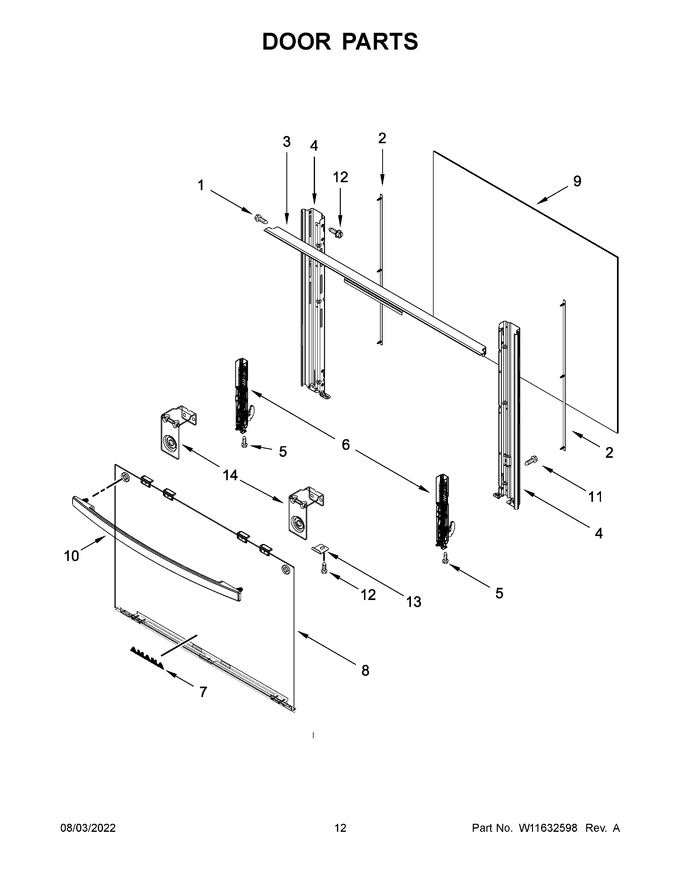

07 - Door Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 8.18 | ||||
| 2 | W11104748 | Seal, Inner Door (Replaces: W10292266) |
|
- | |||||
| 3 | W11105139 | Upper Trim, Oven Door (Replaces: W10544145) |
|
$ 152.63 | |||||
| 4 | W11620487 | Trim, Side (left) (Replaces: W11184558) |
|
- | |||||
| 5 | W10837674 | Screw (Replaces: W10146346) |
|
$ 8.05 | |||||
| 6 | W11240518 | Hinge, Oven Door (stainless Model) (Replaces: W10420753) |
|
$ 152.43 | |||||
| 7 | W11240541 | Badge (stainless) (Replaces: W10846752) |
|
Immediately | $ 77.95 | ||||
| 8 | W11620529 | Panel, Door (stainless) (Replaces: W11498130) |
|
- | |||||
| 9 | W11620489 | Glass, Inner (Replaces: W11528109) |
|
- | |||||
| 10 | W11620538 | Handle, Oven Door (black) (Replaces: W11492899) |
|
- | |||||
| 11 | W11206744 | Screw (Replaces: 98008699) |
|
$ 14.23 | |||||
| 12 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 13 | W10883315 | Bracket, Glass Door Hold (black) (Replaces: W10811550) |
|
- | |||||
| 14 | W11712435 | Handle, Support Bracket (Replaces: W11569276) |
|
- | |||||
| 4A | W11620488 | Trim, Side (right) (Replaces: W11184560) |
|
- |
