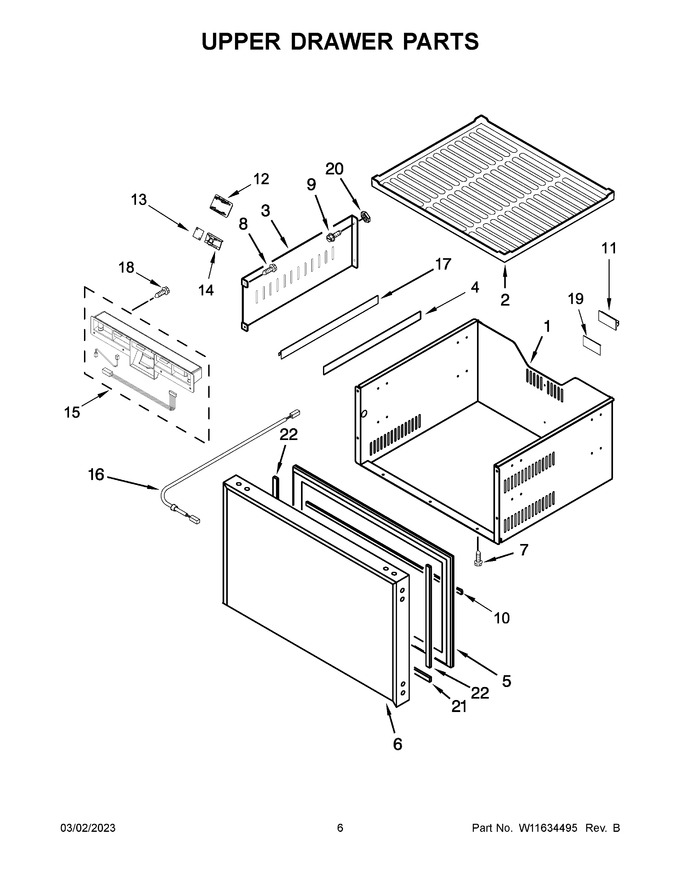

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Upper Drawer Parts


05 - Lower Drawer Parts


06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11422819		Drawer Box Assembly, Upper		Appelez-nous	-
2	W11568835		Mat, Upper Drawer		Appelez-nous	-
3	W11422834		Drawer Partition		Appelez-nous	-
4	W11442514		Wire Support Tape		Appelez-nous	-
5	WPW10622006		Gasket   (Replaces: W10622006)			Immediately	$ 183.09
6	W11422740		Top Foamed Door Assembly		Appelez-nous	-
7	W10319183		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10772909		Cold Air Seal		Appelez-nous	-
11	W10772901		Support, Wire				$ 19.56
12	W10204929		Lamp Cover				$ 89.18
13	W10204930		Led Lamp				$ 347.60
14	W10204931		Lamp Holder				$ 79.66
15	W11422846		Control Assembly				$ 629.51
16	W10789534		Harness, Display To Indicator			Immediately	$ 150.63
17	W10622013		Support, Lead Wire				$ 28.70
18	W10204808		Screw		Appelez-nous	-
19	W11633899		Cover, Relay		Appelez-nous	-
20	W10204920		Nut		Appelez-nous	-
21	W10204889		Door Gasket, Long		Appelez-nous	-
22	W10204897		Door Gasket, Short		Appelez-nous	-
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
NI	W10788702		Overlay Installation Kit				$ 107.70

    View Diagram in Separate Window       Print Part List
