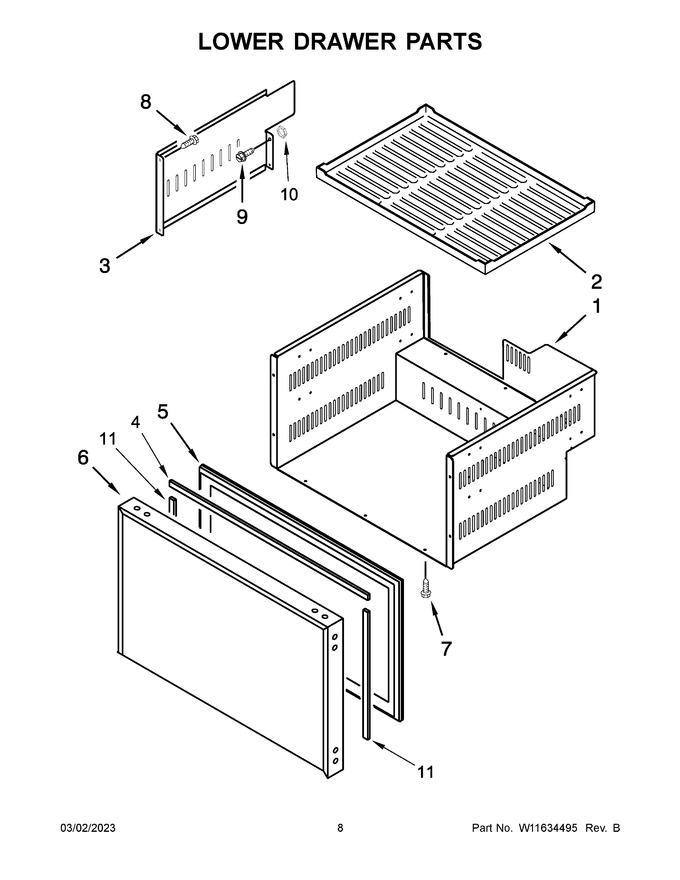

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11422821 | Drawer Box Assembly, Upper |
|
- | |||||
| 2 | W11568945 | Mat, Lower Drawer |
|
- | |||||
| 3 | W11633892 | Bottom Drawer Partition |
|
- | |||||
| 4 | W10204889 | Door Gasket, Long |
|
- | |||||
| 5 | WPW10622006 | Gasket (Replaces: W10622006) |
|
Immediately | $ 183.09 | ||||
| 6 | W11422817 | Bottom Foamed Door Assembly |
|
- | |||||
| 7 | W10319183 | Screw |
|
- | |||||
| 8 | W10204809 | Screw |
|
- | |||||
| 9 | W10204810 | Screw |
|
- | |||||
| 10 | W10204920 | Nut |
|
- | |||||
| 11 | W10204897 | Door Gasket, Short |
|
- |
