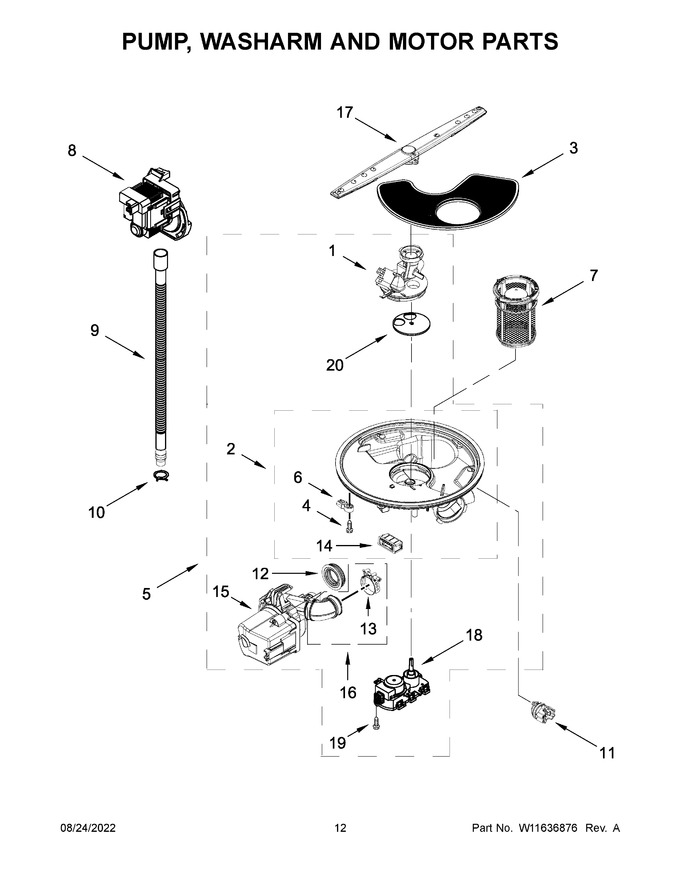

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10455271 | Cover, Outlet (Replaces: W10455271) |
|
Immediately | $ 20.09 | ||||
| 2 | WPW10455268 | Sump With Seal (also Order Items 12 & 16) (Replaces: W10455268) |
|
Immediately | $ 179.66 | ||||
| 3 | WPW10463906 | Screen (Replaces: W10463906) |
|
Immediately | $ 36.35 | ||||
| 4 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 8.06 | |||||
| 5 | W11613480 | Sump & Motor Assembly (Replaces: W11525550) |
|
Immediately | $ 326.06 | ||||
| 6 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 29.36 | ||||
| 7 | W10872845 | Filter Cup Assembly (Replaces: W10789806) |
|
Immediately | $ 55.08 | ||||
| 8 | W10876537 | Pump, Drain (Replaces: W10724439) |
|
Immediately | $ 79.92 | ||||
| 9 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 29.04 | ||||
| 10 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 8.81 | ||||
| 11 | W11612329 | Sensor, Temperature (Replaces: W11525024) |
|
Immediately | $ 22.28 | ||||
| 12 | WPW10538166 | Grommet (Replaces: W11182008) |
|
Immediately | $ 44.37 | ||||
| 13 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.59 | |||||
| 14 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 14.57 | |||||
| 15 | W11612327 | Motor (also Order Items 12 & 16) (Replaces: W11521436) |
|
Immediately | $ 159.51 | ||||
| 16 | W10445975 | Hose Assembly (includes 2 Clamps) |
|
Immediately | $ 85.38 | ||||
| 17 | WPW10491331 | Sprayarm (Replaces: W10491331) |
|
Immediately | $ 55.64 | ||||
| 18 | W11612301 | Motor, Diverter (Replaces: W10910428) |
|
$ 111.31 | |||||
| 19 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 20 | WPW10476221 | Disc, Diverter (Replaces: W10476221) |
|
Immediately | $ 27.41 |
