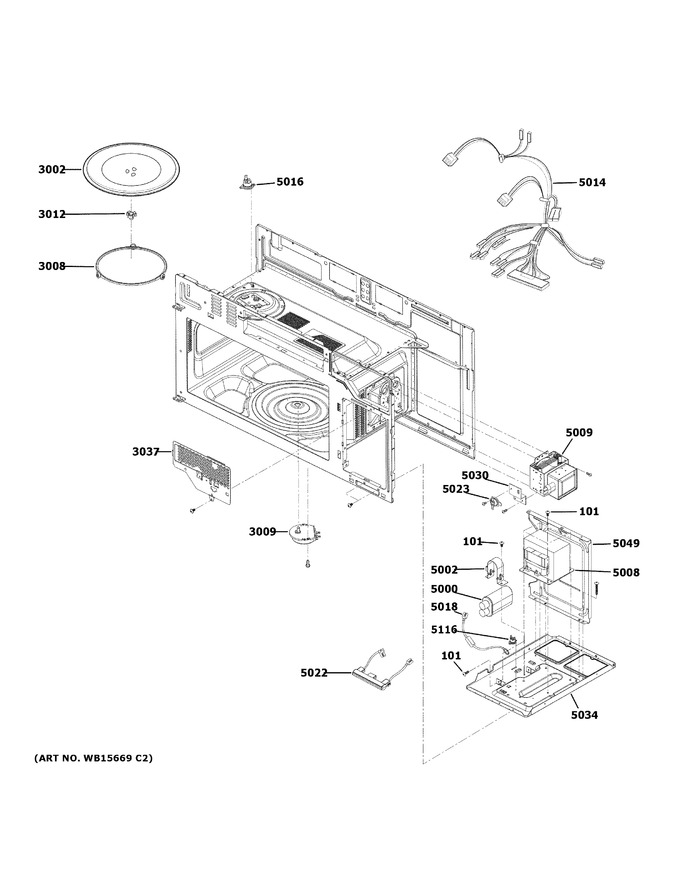

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WB02X10745 | Screw - Binding Head |
|
- | |||||
| 3002 | WB48X35496 | Glass Tray |
|
- | |||||
| 3008 | WB06X35489 | Turntable Asm |
|
- | |||||
| 3009 | WB26X35487 | Motor |
|
- | |||||
| 3012 | WB06X10873 | Shaft,turntable |
|
- | |||||
| 3037 | WB34X35570 | Screen High Voltage |
|
- | |||||
| 5000 | WG02F00228 | Capacitor, H.v (Replaces: WB27X10701) |
|
$ 63.60 | |||||
| 5002 | WB06X10561 | Bracket,capacitor |
|
- | |||||
| 5008 | WB27X37960 | Transformer, Hight Voltage |
|
- | |||||
| 5009 | WB27X10876 | Magnetron |
|
- | |||||
| 5014 | WB18X35510 | Single Harness |
|
- | |||||
| 5016 | WB18X35517 | Thermostat |
|
- | |||||
| 5018 | WB27X35382 | Diode-cable Asm |
|
- | |||||
| 5022 | WB26X35519 | Fuse Asm |
|
- | |||||
| 5023 | WB24X35513 | Thermostat |
|
- | |||||
| 5030 | WB06X10570 | Bracket,misc |
|
- | |||||
| 5034 | WB63X35521 | Bottom Plate |
|
- | |||||
| 5049 | WB02X11362 | Guide,air |
|
- | |||||
| 5116 | WB26X35390 | Thermostat |
|
- |
