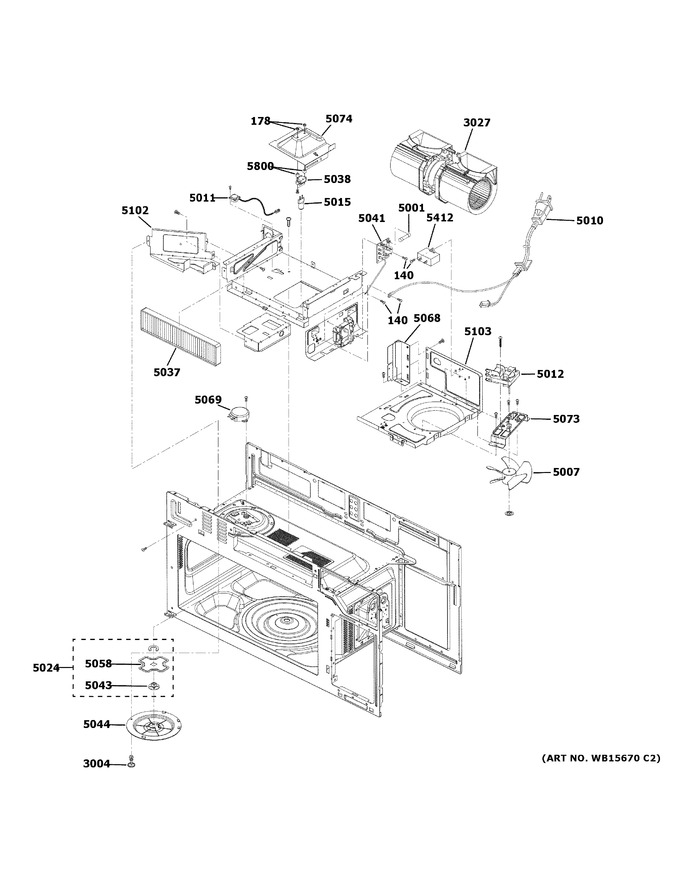

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 140 | WB01X35374 | Screw |
|
- | |||||
| 178 | WB01X10411 | Nut Hexagon |
|
$ 3.88 | |||||
| 3004 | WB01X10055 | Rivet Assy All |
|
- | |||||
| 3027 | WB26X35499 | Motor, Ac Ventilation |
|
- | |||||
| 5001 | WB27X25389 | Fuse |
|
- | |||||
| 5007 | WB38X10101 | Fan |
|
- | |||||
| 5010 | WB18X37959 | Power Cord Asm |
|
- | |||||
| 5011 | WG02F01437 | Sensor Asm (Replaces: WB27X10857) |
|
$ 125.60 | |||||
| 5012 | WB16X35522 | Motor Supporter |
|
- | |||||
| 5015 | WB02X35488 | Halogen Lamp |
|
- | |||||
| 5024 | WB06X10876 | Stirrer, Fan Asm |
|
- | |||||
| 5037 | WB06X10807 | Filter,charcoal |
|
- | |||||
| 5038 | WG02L02137 | Holder Assembly (Replaces: WB06X10554) |
|
$ 29.41 | |||||
| 5041 | WB02X35509 | Noise Filter Assembly |
|
- | |||||
| 5043 | WB06X35523 | Stirrer Fan Holder |
|
- | |||||
| 5044 | WB06X10879 | Cover, Stirrer Fan |
|
- | |||||
| 5058 | WB06X35525 | Stirrer Fan |
|
- | |||||
| 5068 | WB34X35574 | Bracket |
|
- | |||||
| 5069 | WB26X10057 | Motor |
|
- | |||||
| 5073 | WB26X35507 | Motor, Fan |
|
- | |||||
| 5074 | WB36X37947 | Lamp Cover |
|
- | |||||
| 5102 | WB34X35576 | Duct |
|
- | |||||
| 5103 | WB39X35524 | Duct |
|
- | |||||
| 5412 | WB27X36065 | Capacitor |
|
- | |||||
| 5800 | WB01X10414 | Supporter,housing |
|
- |
