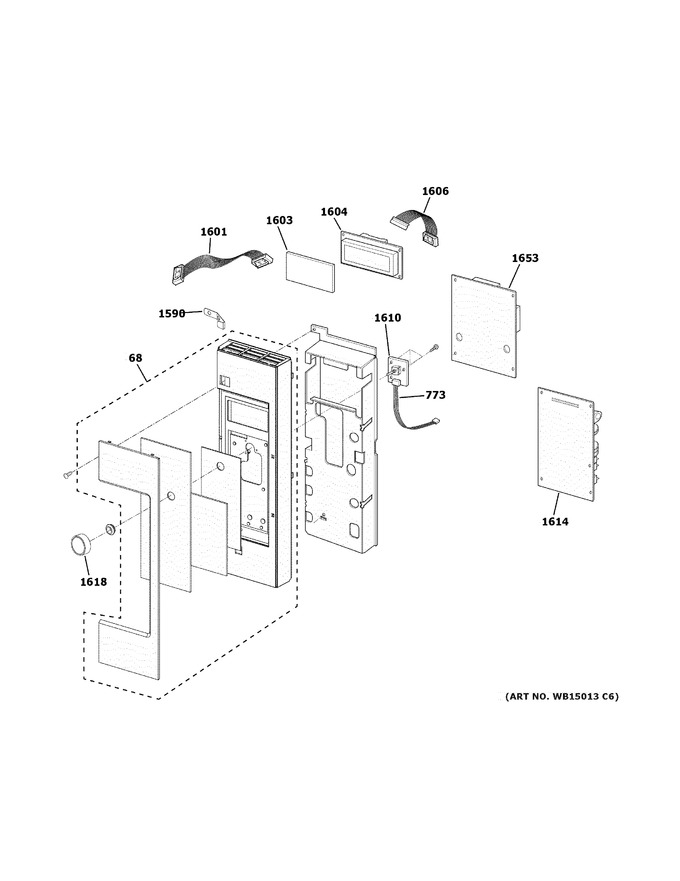

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 68 | WB07X11311 | Controller Asm,sub |
|
- | |||||
| 773 | WB18X32769 | Harness,single |
|
- | |||||
| 1590 | WB06X10837 | Bracket,idle |
|
- | |||||
| 1601 | WB18X32749 | Harness,single |
|
- | |||||
| 1603 | WB27X25563 | Cover Display |
|
- | |||||
| 1604 | WB06X10835 | Vf Display |
|
- | |||||
| 1606 | WB18X32751 | Harness,single |
|
- | |||||
| 1610 | WB27X32632 | Encoder Board |
|
- | |||||
| 1614 | WB27X11114 | Relay Board |
|
- | |||||
| 1618 | WB01X40668 | Stainless Steel Knob |
|
- | |||||
| 1653 | WB27X35345 | Main Board |
|
- |
