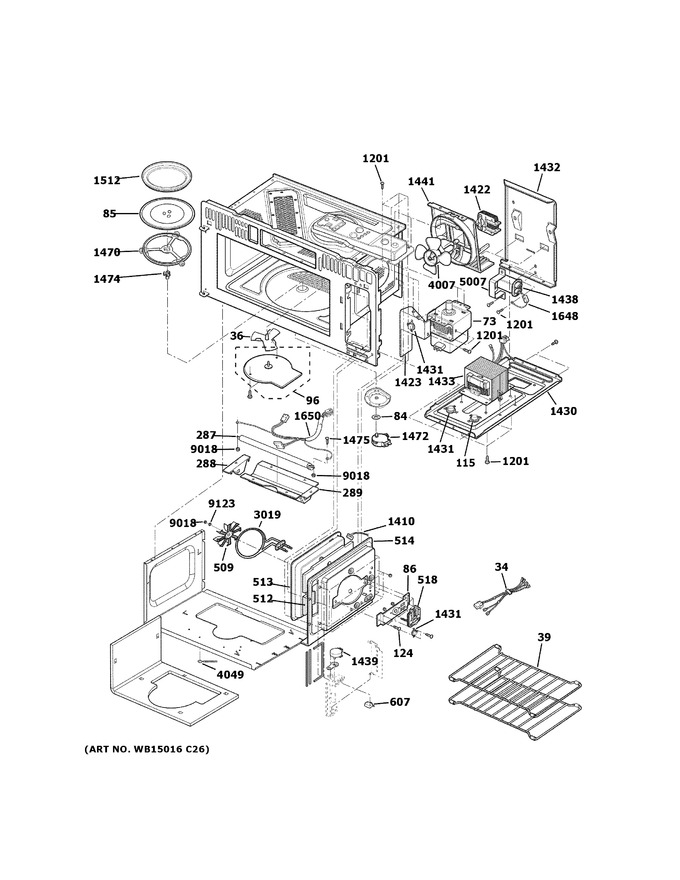

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WB18X32718 | Harness Single |
|
- | |||||
| 36 | WB02X32731 | Fan Stirrer Asm |
|
- | |||||
| 39 | WB48X10064 | Shelf |
|
$ 92.70 | |||||
| 73 | WB27X32766 | Magnetron |
|
- | |||||
| 84 | WB01X40672 | Gasket |
|
- | |||||
| 85 | WB48X35365 | Glass Tray |
|
- | |||||
| 86 | WB56X32723 | Plate Side Heater |
|
- | |||||
| 96 | WB02X32719 | Cover Asm Stirrer Fan |
|
- | |||||
| 115 | WB27X11034 | Thermostat(plate) |
|
- | |||||
| 124 | WB01X10127 | Screw Tapping Truss Head |
|
- | |||||
| 287 | WB21X10141 | Heater Miraclon |
|
- | |||||
| 288 | WB02X32765 | Bracket,heater |
|
- | |||||
| 289 | WB02X32753 | Reflector |
|
- | |||||
| 509 | WB02X32727 | Fan |
|
- | |||||
| 512 | WB06X10664 | Glass Wool |
|
- | |||||
| 513 | WB02X32726 | Chamber |
|
- | |||||
| 514 | WB35X32724 | Insulator |
|
- | |||||
| 518 | WB26X10270 | Motor Circulation |
|
- | |||||
| 607 | WB24X25397 | Switch Monitor Interlock |
|
- | |||||
| 1201 | WB02X10745 | Screw - Binding Head |
|
- | |||||
| 1410 | WG02F05163 | Thermistor Ntc (Replaces: WB18X10287) |
|
Immediately | $ 82.58 | ||||
| 1422 | WB26X10247 | Motor,ac Fan |
|
- | |||||
| 1423 | WB34X32721 | Guide Air |
|
- | |||||
| 1430 | WB63X32768 | Base Transformer |
|
- | |||||
| 1431 | WB20X10048 | Thermostat |
|
- | |||||
| 1432 | WB34X32729 | Guide Air |
|
- | |||||
| 1433 | WB20X10047 | Transformer,h.v |
|
- | |||||
| 1438 | WB27X11031 | Capacitor H.v. |
|
- | |||||
| 1439 | WB26X10248 | Motor, Ac Synchronous |
|
- | |||||
| 1441 | WB39X32800 | Guide Suction |
|
- | |||||
| 1470 | WB06X10834 | Ring Asm |
|
- | |||||
| 1472 | WB26X10193 | Motor Turntable |
|
- | |||||
| 1474 | WB02X11503 | Shaft,turntable |
|
- | |||||
| 1475 | WB02X10726 | Screw -lead Wire Assy |
|
- | |||||
| 1512 | WB49X10240 | Tray-metal Pan, Nonstick |
|
- | |||||
| 1648 | WB27X10892 | Diode |
|
- | |||||
| 1650 | WB18X32730 | Harness Single |
|
- | |||||
| 3019 | WB44X10046 | Convection Heater |
|
- | |||||
| 4007 | WB38X10005 | Fan Blade |
|
- | |||||
| 4049 | WB02X11233 | Holder Wire |
|
- | |||||
| 5007 | WB02X32593 | Capacitor Bracket |
|
- | |||||
| 9018 | WB1X1520 | Nut Common |
|
- | |||||
| 9123 | WB1X1522 | Washer, Splk |
|
- |
