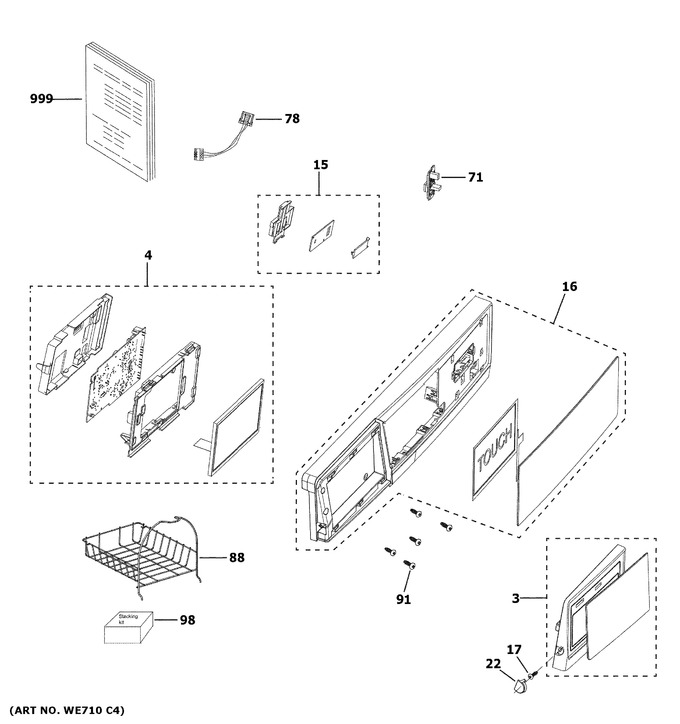

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WE01X29266 | Control Panel Cover |
|
- | |||||
| 4 | WE22X29233 | User Interface Board & Display |
|
- | |||||
| 15 | WH01X29219 | Power Button |
|
- | |||||
| 16 | WE22X29265 | Control Panel |
|
- | |||||
| 17 | WH02X26247 | Screw |
|
$ 1.71 | |||||
| 22 | WE02X28705 | Screw Cover |
|
- | |||||
| 71 | WH22X29227 | Wifi Board |
|
- | |||||
| 78 | WH08X29226 | Power Button Jumper Harness |
|
- | |||||
| 88 | WE01X26416 | Rack |
|
- | |||||
| 91 | WH02X26236 | Screw M4*10 |
|
- | |||||
| 98 | GFA24KITL | 24" Frontload Stacking Kit |
|
Immediately | $ 77.82 | ||||
| 999 | 49-3000195 | Pm Owners And Install |
|
- | |||||
| 999 | 31-3000196 | Pm Mini Manual And Wiring |
|
- |
