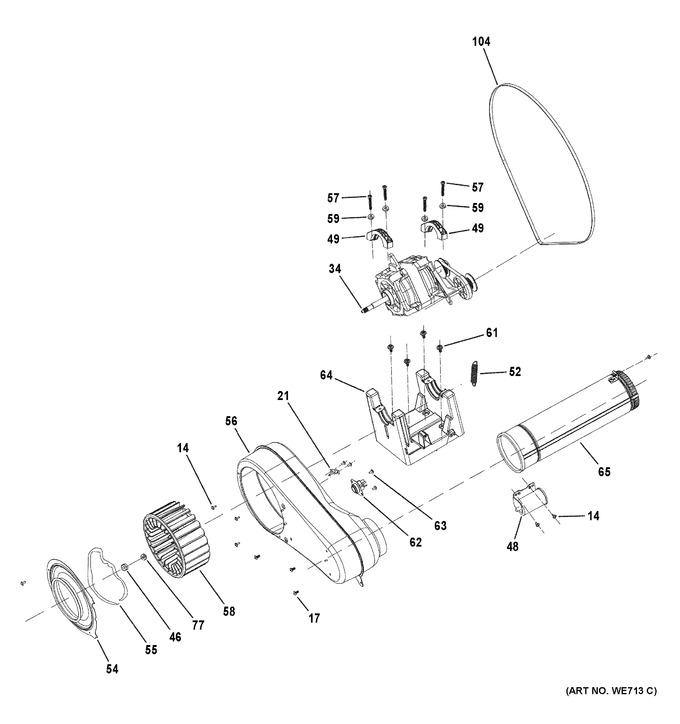

Blower & Motor Assembly
Cabinet & Top Panel
Controls & Backsplash
Drum
Front Panel & Door
Optional Accessories
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | WH02X26267 | Screw St3.5*12 |
|
- | |||||
| 17 | WH02X26247 | Screw |
|
$ 1.71 | |||||
| 21 | WE04X26348 | Outlet Thermister |
|
$ 33.41 | |||||
| 34 | WE03X28740 | Motor |
|
- | |||||
| 46 | WE02X28704 | Nut M8 |
|
- | |||||
| 48 | WE01X26354 | Capacitor |
|
- | |||||
| 49 | WE13X28726 | Motor Bracket |
|
- | |||||
| 52 | WE01X28759 | Spring |
|
- | |||||
| 54 | WE01X28758 | Volute End Cover |
|
- | |||||
| 55 | WE09X27688 | Gasket |
|
- | |||||
| 56 | WE13X28716 | Blower Motor Cover |
|
- | |||||
| 57 | WE02X28698 | Bolt M5*25 |
|
- | |||||
| 58 | WE16X28729 | Blower Fan |
|
- | |||||
| 59 | WE02X28738 | Motor Spring |
|
- | |||||
| 61 | WE02X28706 | Bolt M5*14 |
|
- | |||||
| 62 | WE04X28741 | Temperature Control |
|
- | |||||
| 63 | WH02X26927 | Capacitor Screws |
|
- | |||||
| 64 | WE13X28727 | Motor Bracket |
|
- | |||||
| 65 | WE13X28734 | Exhaust Pipe |
|
- | |||||
| 77 | WH01X27132 | Cw Bolt Tension Washer |
|
- | |||||
| 104 | WE12X26360 | Belt |
|
- |
