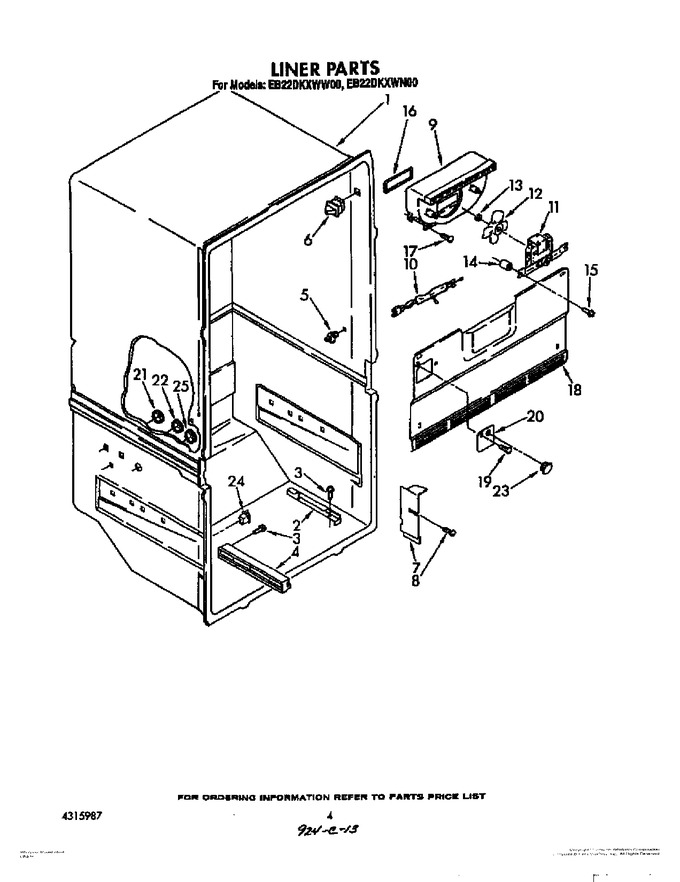

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 986382 | Slide, Basket (right Side) |
|
- | |||||
| 2 | 986383 | Slide, Basket (left Side) |
|
- | |||||
| 3 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.75 | |||||
| 4 | 2149175 | Shelf Track, (right Side) |
|
- | |||||
| 4 | 2149174 | Shelf Track, (left Side) |
|
- | |||||
| 5 | 1118066 | Stud (2) |
|
- | |||||
| 6 | W11384469 | Switch, Rocker Arm (Replaces: 1108112) |
|
Immediately | $ 37.23 | ||||
| 7 | 1127396 | Electrical Shield Extension |
|
- | |||||
| 8 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 9 | 2149169 | Scroll, Fan |
|
- | |||||
| 10 | 1127434 | Wiring Assembly, Fan Motor |
|
- | |||||
| 11 | 1127401 | Fan Motor |
|
- | |||||
| 12 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 13 | 992953 | Ring, Compression |
|
- | |||||
| 14 | 1114354 | Grommet (2) |
|
- | |||||
| 15 | 489168 | Screw (2) |
|
- | |||||
| 16 | 1127406 | Gasket, Fan Scroll |
|
- | |||||
| 17 | WP489478 | Screw (4) (Replaces: 489242) |
|
$ 7.75 | |||||
| 18 | 1115004 | Cover, Evaporator |
|
- | |||||
| 19 | WP488729 | Screw (7) (Replaces: 489196) |
|
Immediately | $ 7.79 | ||||
| 20 | WP2217784 | Hole Cover, Evaporator (Replaces: 1129070) |
|
$ 44.97 | |||||
| 21 | 944795 | Hole Plug (2) |
|
- | |||||
| 22 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.65 | |||||
| 23 | 1103725 | Hole Plug |
|
- | |||||
| 24 | W11457217 | Switch (Replaces: 1115373) |
|
$ 38.18 | |||||
| 25 | 1120224 | Hole Seal |
|
- |
