SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf, Lit/optional


06 - Unit


07 - Refrigerator Door


08 - Freezer Door

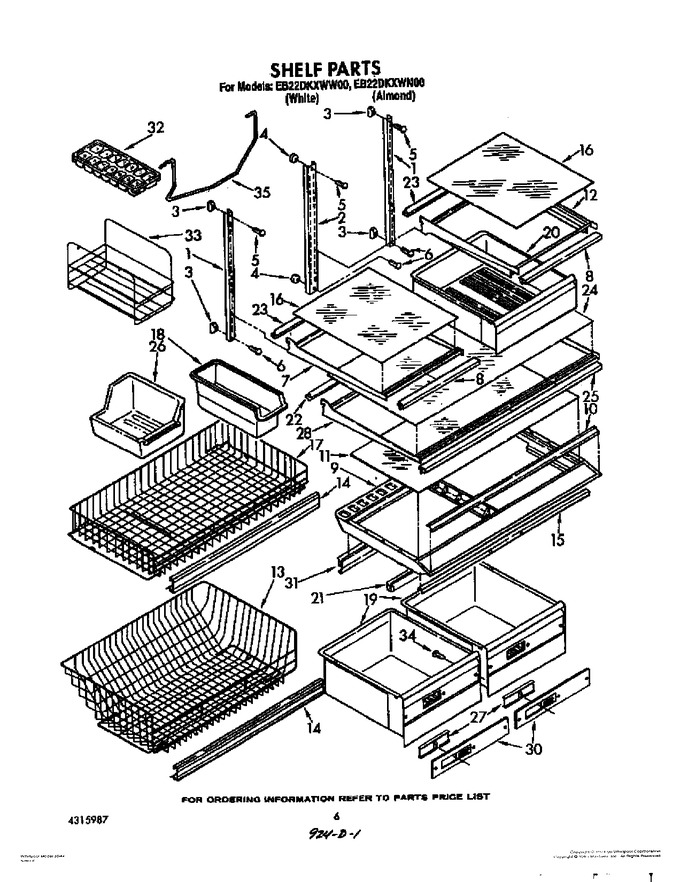

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1127413		Shelf, Ladder (2)		Appelez-nous	-
2	1127414		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	WP488163		Screw, 8-32 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488725)				$ 7.92
7	1110739		Shelf, Cantilever		Appelez-nous	-
8	1110741		Trim, Shelf		Appelez-nous	-
9	1116485		Crisper Cover		Appelez-nous	-
10	1105649		Trim, Crisper Cover		Appelez-nous	-
11	1124553		Glass, Crisper Cover		Appelez-nous	-
12	1110756		Pan Shelf, Cantilever		Appelez-nous	-
13	1127250		Freezer Basket, (lower)		Appelez-nous	-
14	1127251		Trim, Basket		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 102.08
16	1124554		Glass, Shelf		Appelez-nous	-
17	2149146		Freezer Basket, (upper)		Appelez-nous	-
18	WP982704		Container   (Replaces: 1108734)				$ 32.55
19	1121124		Pan, Crisper		Appelez-nous	-
20	1124218		Pan, Meat		Appelez-nous	-
21	1116512		Crisper Gasket, Front (2)		Appelez-nous	-
22	1114435		Reflector, Shelf		Appelez-nous	-
23	1110743		Reflector, Shelf		Appelez-nous	-
24	1124555		Glass, Full Shelf		Appelez-nous	-
25	1119562		Trim, Shelf		Appelez-nous	-
26	W11625904		Ice Cube Pan   (Replaces: 1114367)				$ 67.83
27	1116718		Slide, Crisper		Appelez-nous	-
28	1116350		Shelf, Full Cantilever		Appelez-nous	-
30	1114776		Crisper Pan, Front		Appelez-nous	-
31	1105653		Crisper Gasket, Rear (2)		Appelez-nous	-
32	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 47.84
33	2147011		Ice Tray Rack		Appelez-nous	-
34	489226		Screw		Appelez-nous	-
35	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
35	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
35	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
35	833938		Kit, Terminal Connector				$ 8.47
35	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
35	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
35	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
35	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
35	2149150		Arm, Icemaker Must Be Ordered When Ordering Field Installable Icemaker		Appelez-nous	-
35	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
35	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
35	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
35	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
35	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
35	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
35	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
35	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
35	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
35	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
35	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	1129316		Eckmf90			Immediately	$ 149.11
	LIT4315987		Parts List Rev. B		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2149156		Service & Wiring Sheet		Appelez-nous	-
	LIT1127423		Care & Use Guide		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	LIT2148869		Energy Guide		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
NI	489226		Screw (6)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
