New Model Search:

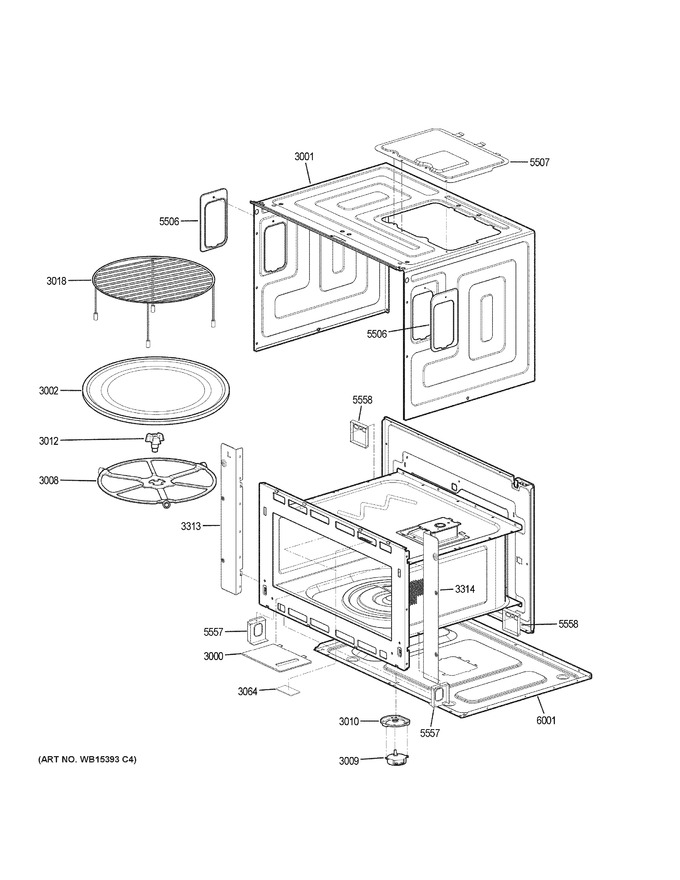

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3000 | WB06X10638 | Canopy Mica |
|
- | |||||
| 3001 | WB56X22096 | Outer Case |
|
- | |||||
| 3002 | WG02A04441 | Tray Glass (Replaces: WB49X10166) |
|
$ 147.53 | |||||
| 3008 | WB06X10651 | Rotating Ring Asm |
|
- | |||||
| 3009 | WB26X10193 | Motor Turntable |
|
- | |||||
| 3010 | WB06X10649 | Mount |
|
- | |||||
| 3012 | WB06X10693 | Shaft Asm |
|
- | |||||
| 3018 | WB49X10213 | Rack |
|
- | |||||
| 3064 | WB55X10802 | Seal Tape |
|
- | |||||
| 3313 | WB07X11223 | Trim,side Left |
|
- | |||||
| 3314 | WB07X11224 | Trim,side Right |
|
- | |||||
| 5506 | WB02X10684 | Door Switch Access Cvr |
|
- | |||||
| 5507 | WB02X11221 | Bracket |
|
- | |||||
| 5557 | WB02X11224 | Bracket |
|
- | |||||
| 5558 | WB02X11225 | Bracket |
|
- | |||||
| 6001 | WB63X22091 | Base Plate Asm |
|
- |
