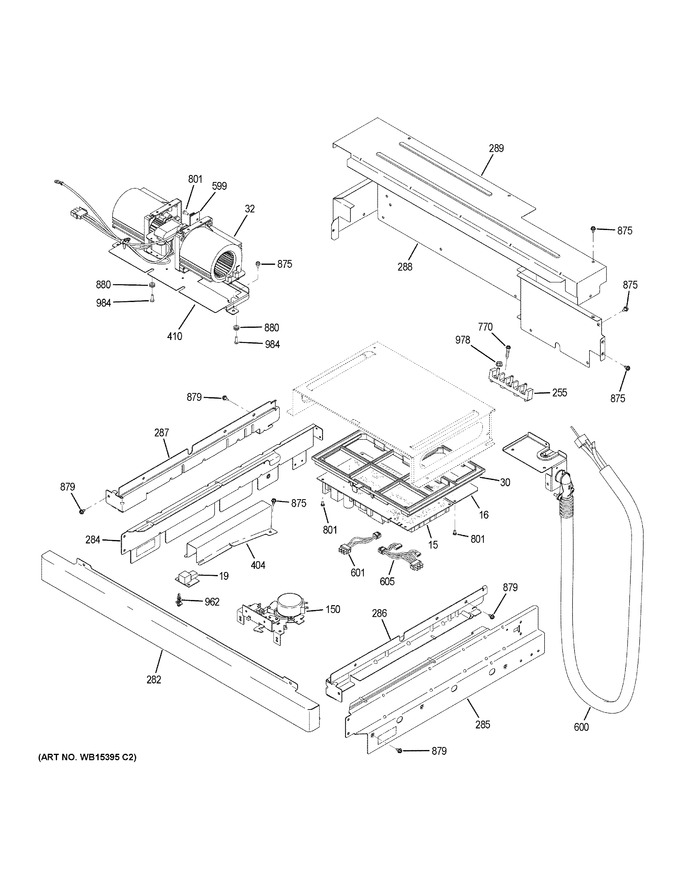

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | WB27X33487 | Machine Board Control |
|
- | |||||
| 16 | WB27X25692 | Bridge Board |
|
- | |||||
| 19 | WB27X21904 | Board Rj45 Connector |
|
- | |||||
| 30 | WB02X21902 | Frame Board Relay |
|
- | |||||
| 32 | WB26X31060 | Cooling Fan |
|
- | |||||
| 150 | WB10X28391 | Latch Asm |
|
- | |||||
| 255 | WB17T10024 | Block Terminal |
|
- | |||||
| 282 | WB07X21951 | Trim Middle 30 (ss) |
|
- | |||||
| 284 | WB34X24076 | Support Middle Lt Mwo 30 |
|
- | |||||
| 285 | WB34X24077 | Support Middle Rt Mwo 30 |
|
- | |||||
| 286 | WB34X21947 | Support Slide 30 Rh |
|
- | |||||
| 287 | WB34X21946 | Support Slide 30 Lh |
|
- | |||||
| 288 | WB34X21949 | Cover Housing Rear 30 |
|
- | |||||
| 289 | WB34X21944 | Cover Wire Top |
|
- | |||||
| 404 | WB34T10150 | Channel Upper Air Vent |
|
- | |||||
| 410 | WB37T10026 | Bracket Upper Fan Mount |
|
- | |||||
| 599 | WB27T11463 | Board Fan Sensor |
|
- | |||||
| 600 | WB18X30613 | Conduit Wire Asm |
|
- | |||||
| 600 | WB18T10580 | Optional 6 Ft Conduit |
|
- | |||||
| 601 | WB18X24081 | Harness Wire Com |
|
- | |||||
| 605 | WB18X33172 | Main Harness Wire |
|
- | |||||
| 770 | WB1K5072 | Screw |
|
- | |||||
| 801 | WD02X10129 | 6-19 X 1/4 Torx Pan Head |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 879 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 880 | WB01T10128 | Grommet |
|
- | |||||
| 962 | WB02T10093 | Standoff Pcb |
|
- | |||||
| 978 | WB1X1259 | Hex Nut |
|
- | |||||
| 984 | WB01T10130 | Screw 7-19 1/4hex 1/2in |
|
- |
