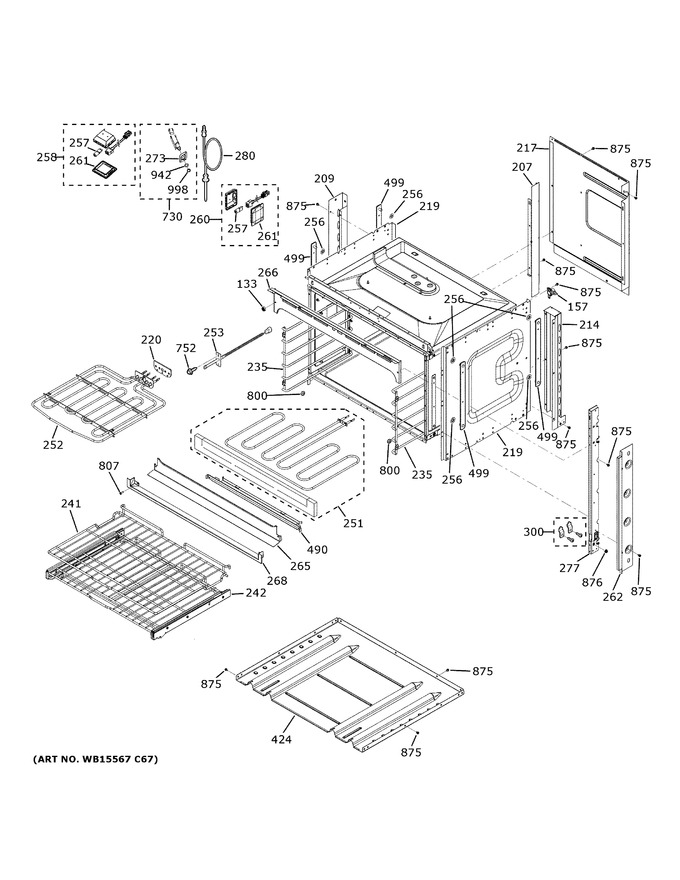

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 133 | WB03T10341 | Bumper Door |
|
- | |||||
| 157 | WB24T10164 | Switch High Limit |
|
- | |||||
| 207 | WB34T10134 | Divider Air Bottom |
|
- | |||||
| 209 | WB34X35265 | Channel Rear |
|
- | |||||
| 214 | WB34X21912 | Channel Rear Rt |
|
- | |||||
| 217 | WB34T10136 | Cover - Upper Rear Duct |
|
- | |||||
| 219 | WB34X21913 | Retainer Insln Sde |
|
- | |||||
| 220 | WB35X21972 | Gasket Broil Element |
|
- | |||||
| 235 | WB48X21766 | Guide Ovn Rack Lt |
|
- | |||||
| 235 | WB48X21765 | Guide Ovn Rack Rt |
|
- | |||||
| 241 | WB48X23857 | Rack Flat |
|
- | |||||
| 242 | WB48X21764 | Rack Ovn Slide Asm |
|
- | |||||
| 251 | WB44X21667 | Hidden Bake Element Kit |
|
- | |||||
| 252 | WB44X41047 | Element Broil Asm |
|
- | |||||
| 253 | WB21X10165 | Sensor Asm |
|
- | |||||
| 256 | WB01T10107 | Ladder Rack Bolt Retainer Clip |
|
- | |||||
| 257 | WB25T10102 | Lamp Halogen Bulb G9 |
|
- | |||||
| 258 | WB25X31223 | Side Halogen Lamp Asm |
|
- | |||||
| 260 | WB25X31221 | Top Halogen Lamp Asm |
|
- | |||||
| 261 | WB34X31317 | Oven Light Lens |
|
- | |||||
| 262 | WB07T10732 | Trim Vert Side (bk) |
|
- | |||||
| 265 | WB07X21187 | Trim Vent Lwr |
|
- | |||||
| 266 | WB07X21942 | Trim Vent Upr |
|
- | |||||
| 268 | WB07X32832 | Bottom Trim |
|
- | |||||
| 273 | WB34K5140 | Probe Cover |
|
- | |||||
| 277 | WB07X35692 | Brace Vertical Left |
|
- | |||||
| 277 | WB07T10754 | Brace Vertical Right Blk |
|
- | |||||
| 280 | WG02F05721 | Meat Probe (Replaces: WB20T10024) |
|
Immediately | $ 63.86 | ||||
| 300 | WG02A01591 | Hinge Bracket Asm Kit (Replaces: WB49X21652) |
|
$ 126.62 | |||||
| 424 | WB34T10158 | Cover Bottom Air Duct |
|
- | |||||
| 490 | WB55T10197 | Cover Hidden Bake |
|
- | |||||
| 499 | WB34X30789 | Ladder Rack Bolt Asm |
|
- | |||||
| 730 | WB18X23585 | Meat Probe Receptacle And Harness |
|
- | |||||
| 752 | WB01X21742 | Screw |
|
- | |||||
| 800 | WB01X21270 | Rack Guide Nut |
|
- | |||||
| 807 | WG02A00783 | Trim Screw-blk (Replaces: WB1K5173) |
|
$ 3.57 | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 876 | WB01T10127 | Lock Nut |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 998 | WG02A00927 | Nut Meat Probe (Replaces: WB1X5572) |
|
$ 67.26 |
