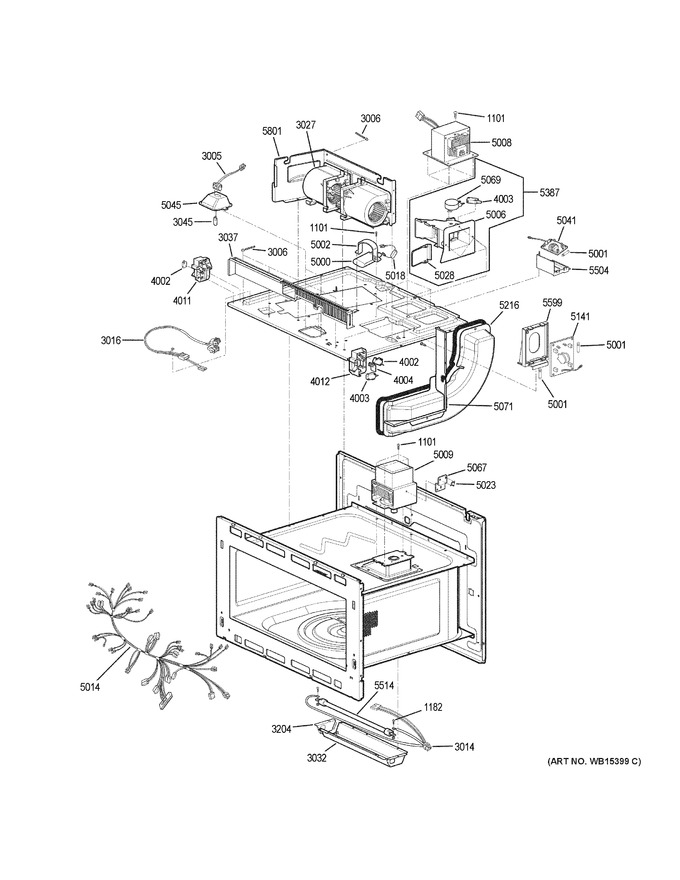

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1101	WB02X10745		Screw - Binding Head		Appelez-nous	-
1182	WB02X10726		Screw -lead Wire Assy		Appelez-nous	-
3005	WB06X10646		Holder Asm		Appelez-nous	-
3006	WB02X11233		Holder Wire		Appelez-nous	-
3014	WB18X10387		Harness,single		Appelez-nous	-
3016	WB18X22097		Harness Wire		Appelez-nous	-
3027	WB26X10182		Cooling Fan Motor		Appelez-nous	-
3032	WB02X11318		Reflector		Appelez-nous	-
3037	WB06X10645		Protector (mech)		Appelez-nous	-
3045	WG02F15180		Lamp Halogen   (Replaces: WB08X10057)			Immediately	$ 10.01
3204	WB02X11223		Bracket Heater		Appelez-nous	-
4002	WG02F01561		Switch Micro   (Replaces: WB24X10029)			Immediately	$ 22.87
4003	WB24X817		Switch Montr		Appelez-nous	-
4004	WG02F07974		Lever   (Replaces: WB02X11214)				$ 9.25
4011	WG02A03526		Latch Body Lt   (Replaces: WB06X10639)				$ 31.45
4012	WG02F06595		Latch Body Rt   (Replaces: WB06X10640)				$ 20.16
5000	WG02F00228		Capacitor, H.v   (Replaces: WB27X10701)			Immediately	$ 57.24
5001	WG02F06332		Fuse   (Replaces: WB27X10388)			Immediately	$ 14.29
5002	WB02X11226		Bracket Capacitor		Appelez-nous	-
5006	WB02X11231		Duct		Appelez-nous	-
5008	WG02F02753		Transformer,high Voltage   (Replaces: WB17X10030)				$ 185.77
5009	WG02F13440		Magnetron   (Replaces: WB27X10305)				$ 374.35
5014	WB18X22109		Harness Wire		Appelez-nous	-
5018	WB18X10286		Cable Asm		Appelez-nous	-
5023	WB20X10048		Thermostat		Appelez-nous	-
5028	WB02X11217		Bracket Damper		Appelez-nous	-
5041	WB27X22108		Noise Filter Board		Appelez-nous	-
5045	WB02X11211		Cover Lamp		Appelez-nous	-
5067	WB02X10721		Bracket- Magnetron		Appelez-nous	-
5069	WB26X10248		Motor, Ac Synchronous		Appelez-nous	-
5071	WB02X22086		Barrier		Appelez-nous	-
5141	WB27X26322		Surge Filter Board		Appelez-nous	-
5216	WB02X11230		Duct		Appelez-nous	-
5387	WB34X22117		Duct Asm		Appelez-nous	-
5504	WB02X22095		Supporter		Appelez-nous	-
5514	WB21X10163		Heater Miraclon		Appelez-nous	-
5599	WB02X11229		Supporter		Appelez-nous	-
5801	WB06X10647		Mount		Appelez-nous	-
