View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel / Top Burners

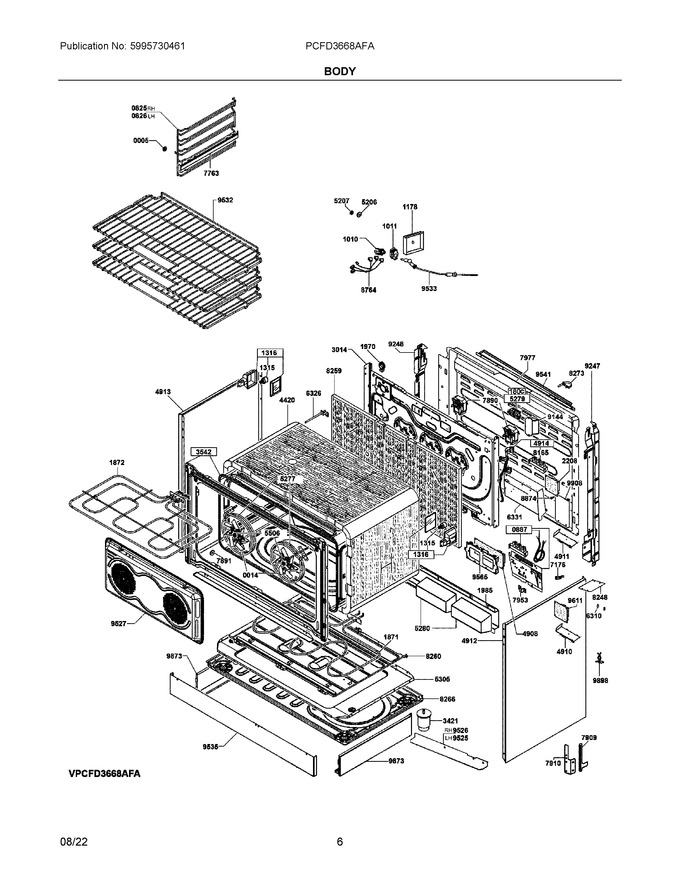

03 - Body
04 - Main Top
05 - Door / Cooling-venting
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1714 | 5304527484 | Thermocouple, +or Mm600 |
|
Immediately | $ 116.13 | ||||
| 2999 | 5304531583 | Foot, Grate, Rubber |
|
Immediately | $ 31.86 | ||||
| 3359 | 5304527470 | Clip, Wiring, Spark Ignitor |
|
- | |||||
| 3482 | 5304527486 | Thermostat, 65 Deg.c, (2) |
|
$ 86.00 | |||||
| 4724 | 5304531588 | Ignitor, Spark, Top Burner |
|
Immediately | $ 75.83 | ||||
| 4875 | 5304531593 | Grate, Top Burner, Black, Lh |
|
$ 400.24 | |||||
| 4876 | 5304531594 | Grate, Top Burner, Black, Rh |
|
$ 400.24 | |||||
| 4877 | 5304531595 | Grate, Top Burner, Black, Center |
|
$ 373.36 | |||||
| 4878 | 5304531596 | Maintop, Assembly, Stainless |
|
$ 578.23 | |||||
| 4879 | 5304531597 | Ignitor, Spark, Top Burner |
|
Immediately | $ 86.30 | ||||
| 4895 | 5304531613 | Support, Maintop, Rear |
|
$ 157.35 | |||||
| 5463 | 5304527445 | Nut, Thermocouple, Top Burner |
|
$ 21.99 | |||||
| 6821 | 5304527440 | Spacer, Frame, Rear, (2) |
|
$ 23.51 | |||||
| 6836 | 5304527495 | Cap, Dual Burner, 12k, Black, Internal |
|
Immediately | $ 74.93 | ||||
| 7403 | 5304527460 | Screw, Burner, M4 X 8 |
|
- | |||||
| 8605 | 5304527728 | Bracket, Rh |
|
$ 37.99 | |||||
| 8606 | 5304527729 | Bracket, Lh |
|
$ 37.99 | |||||
| 9644 | 5304527443 | Module, Spark Ignitor, (2) |
|
Immediately | $ 184.94 | ||||
| 9721 | 5304527541 | Side Bracket, Kit, Rh And Lh, Rear |
|
$ 228.56 | |||||
| 9722 | 5304527746 | Trim, Cook Top, Stainless, Rear |
|
$ 261.18 | |||||
| 9723 | 5304527747 | Bracket, Rear Trim |
|
- | |||||
| 9728 | 5304527543 | Bracket, Support, (2) |
|
$ 32.96 | |||||
| 9737 | 5304527547 | Plate, Cook Top, (2) |
|
- | |||||
| 9752 | 5304527548 | Harness, Wiring, Thermostats |
|
Immediately | $ 103.90 | ||||
| 9767 | 5304527550 | Burner, Support, Cook Top, Flame Spreader |
|
$ 132.51 | |||||
| 9768 | 5304527551 | Burner Cap, Flame Spreader, 18k, Brass, Lh/rh Front, (2) |
|
$ 215.48 | |||||
| 9769 | 5304527552 | Burner Cap, Flame Spreader, Black |
|
$ 231.51 | |||||
| 9770 | 5304527553 | Cap, Dual Burner, 18k, Brass, Lh/rh Front, (2) |
|
$ 118.46 |
