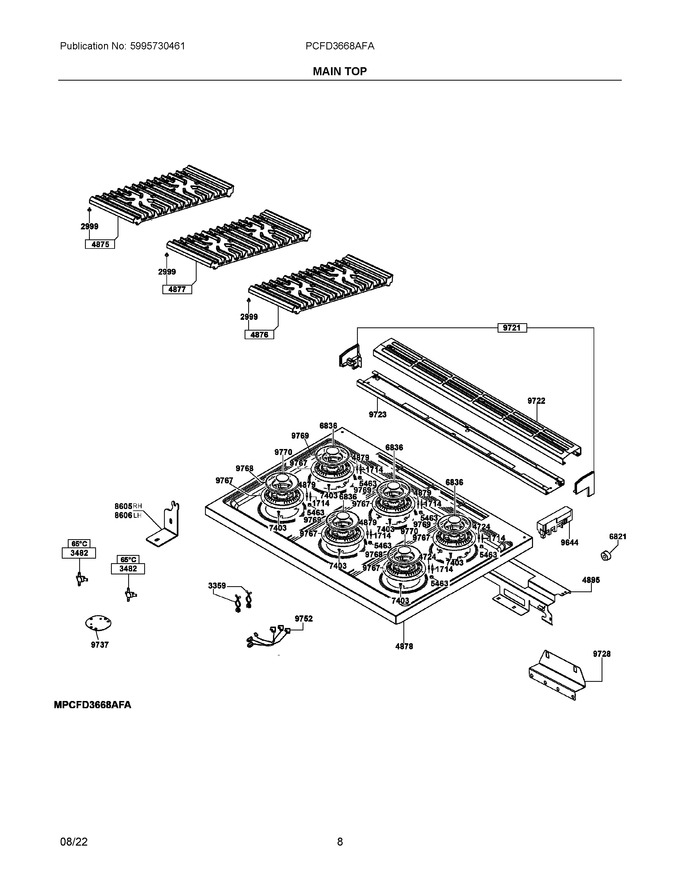

04 - Main Top


05 - Door / Cooling-venting


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
212	5304527455		Chimney, Oven Catalyst		Appelez-nous	-
956	5304527463		Hook, Door Hinge, Oven, (2)		Appelez-nous	-
1043	5304531573		Hinge, Door		Appelez-nous	-
1190	5304527705		Bracket, Column, Lh Front				$ 136.08
1191	5304527706		Bracket, Column, Rh Front				$ 138.35
1256	5304527707		Bumper, Rubber, Rear, (2), Air Duct		Appelez-nous	-
1343	5304527456		Switch, Micro, Door, 16a, 220v				$ 79.13
2639	5304527469		Bracket, Microswitch, Door		Appelez-nous	-
3360	5304527471		Bumper, Door, (2)		Appelez-nous	-
3361	5304527709		Gasket, Oven Door				$ 186.96
3564	5304527717		Frame, Inner Door		Appelez-nous	-
3566	5304527718		Glass, Door, Middle			Immediately	$ 220.33
3627	5304531586		Spacer, Door, Inner		Appelez-nous	-
4570	5304527488		Heater, Ceramic, 60 Ohm, 50w			Immediately	$ 178.93
4680	5304527473		Lever, Microswitch				$ 17.44
4871	5304531589		Panel, Bottom, Stainless, Front		Appelez-nous	-
4872	5304531590		Handle, Door, Stainless				$ 219.96
4873	5304531591		Door Assembly, Outer, Glass/steel, Stainless				$ 532.54
4874	5304531592		Guide Pin, Handle		Appelez-nous	-
6161	5304527446		Spring, Pivot Fixing, Door		Appelez-nous	-
6583	5304527452		Screw, Tsc Zinc, M5 X 45, (2), Door Handle		Appelez-nous	-
7042	5304527713		Trim Assembly, Door, Upper		Appelez-nous	-
7695	5304527721		Door Glass, Assembly, Internal				$ 320.89
7829	5304527499		Shock Absorber, Assembly, Door-rh, W/bracket				$ 205.54
7830	5304527500		Shock Absorber, Assembly, Door-lh, W/bracket				$ 205.54
8028	5304527714		Grommet, Stopper, Middle Glass, (4)		Appelez-nous	-
8276	5304527464		Catch, Door Latch, Inner		Appelez-nous	-
9316	5304527704		Air Duct, Assembly, Cooling Fan				$ 191.11
9540	5304527739		Extension, Air Duct				$ 146.01
9654	5304527448		Bumper, Rubber		Appelez-nous	-
9724	5304527542		Support, Assembly, Cooling Motor				$ 114.52
9782	5304527479		Blower, Motor, Cooling Fan			Immediately	$ 292.22
