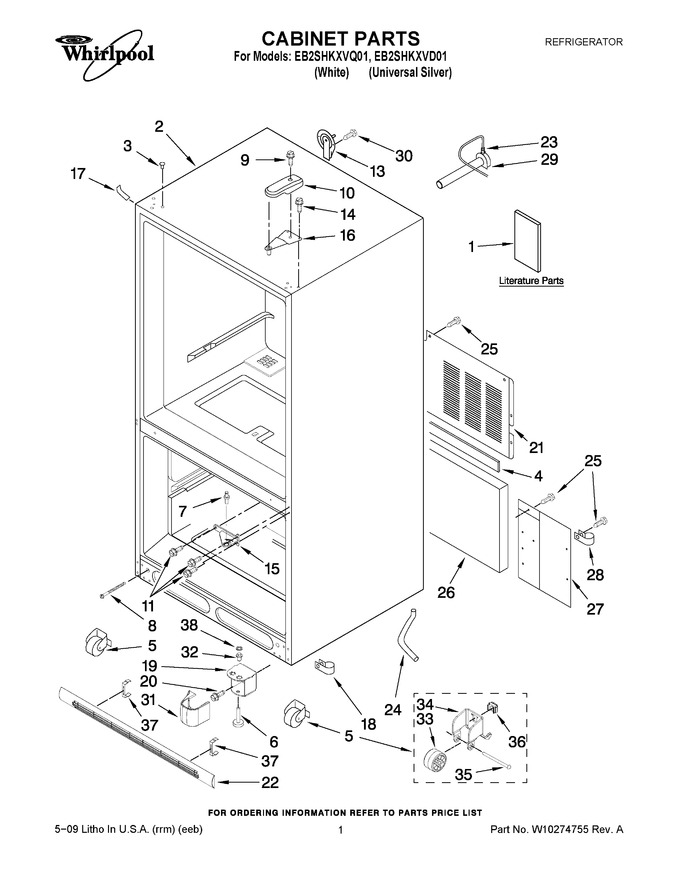

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238840 | Tech Sheet |
|
- | |||||
| 1 | W10235752 | Energy Guide |
|
- | |||||
| 1 | W10200283 | Use & Care Guide |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) (white) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 12580304 | Roller Assy. (2) |
|
$ 5.84 | |||||
| 6 | 10354002 | Foot, Brake |
|
Immediately | $ 7.38 | ||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 8.27 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 12606103) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 10 | 67001014 | Cover Hinge (white) (Replaces: 12477601W) |
|
$ 22.34 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 18 | W10157973 | Clip, Drain |
|
$ 7.80 | |||||
| 19 | 12465005ED | Hinge, Bottom (black) |
|
$ 72.99 | |||||
| 19 | 12465002WD | Hinge, Bottom (white) |
|
$ 74.86 | |||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 196.41 | |||||
| 22 | 12734401W | Grille Assembly (includes Clips) (white) |
|
- | |||||
| 22 | 12734401B | Grille Assembly (includes Clips) (black) |
|
- | |||||
| 23 | WPM0114003 | Clip, Speed (Replaces: M0114003SP) |
|
$ 11.05 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 27 | 12479802 | Cover, Water Valve |
|
- | |||||
| 28 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 29 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 114.15 | ||||
| 30 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 31 | 12561901B | Cover, Hinge (black) |
|
$ 11.62 | |||||
| 31 | 12561901W | Cover, Hinge (white) |
|
$ 6.37 | |||||
| 32 | 67007018 | Pin, Bottom Hinge (Replaces: 10200802) |
|
Immediately | $ 8.62 | ||||
| 33 | WP10450603 | Roller (Replaces: 10450603V) |
|
$ 7.88 | |||||
| 34 | 12456801V | Bracket, Roller |
|
$ 53.10 | |||||
| 35 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 36 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 37 | 12627302SP | Clip, Toe Grille |
|
- | |||||
| 38 | WPM0274062 | Shim (black) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 38 | WPM0274057 | Shim (white) (Replaces: M0274057) |
|
Immediately | $ 8.00 |
