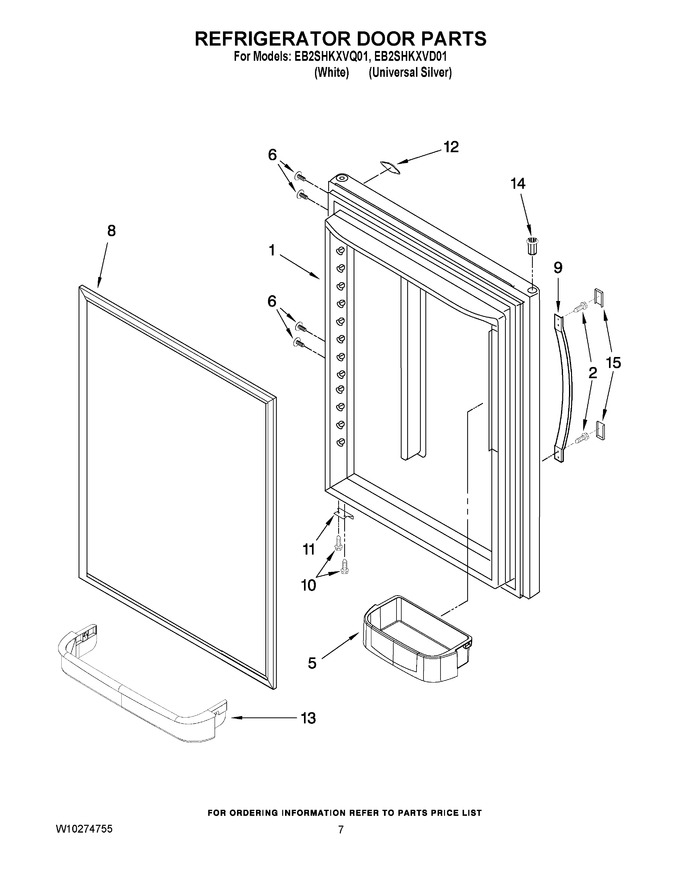

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658591WQ		Door, Refrigerator (white)		Appelez-nous	-
1	13023866DQ		Door, Refrigerator (universal Silver)		Appelez-nous	-
2	60001022		Screw (2)   (Replaces: 12990508)				$ 66.41
5	WP67001021		Bucket, Medium (5)   (Replaces: 12557204)				$ 84.95
6	12991101		Screw (4) (white)				$ 13.47
6	12991105		Screw (4) (black)		Appelez-nous	-
8	WPW10436248		Gasket, Door (black)   (Replaces: W10164035)				$ 286.97
8	W10443313		Gasket, Door (white)   (Replaces: W10164034)				$ 361.01
9	WP2217185B		Handle, Door (black)   (Replaces: 12691001BN)				$ 190.14
9	12691001WN		Handle, Door (white)		Appelez-nous	-
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.75
11	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 69.29
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
13	12690502		Retainer, Ref Door				$ 45.03
14	67004978		Bushing (4) (black)   (Replaces: 10961006B)				$ 22.10
14	WP67004977		Bushing (4) (white)   (Replaces: 10961006W)				$ 8.20
15	12691202BN		Trim, Handle (black)		Appelez-nous	-
15	12691202WN		Trim, Handle (white)		Appelez-nous	-
