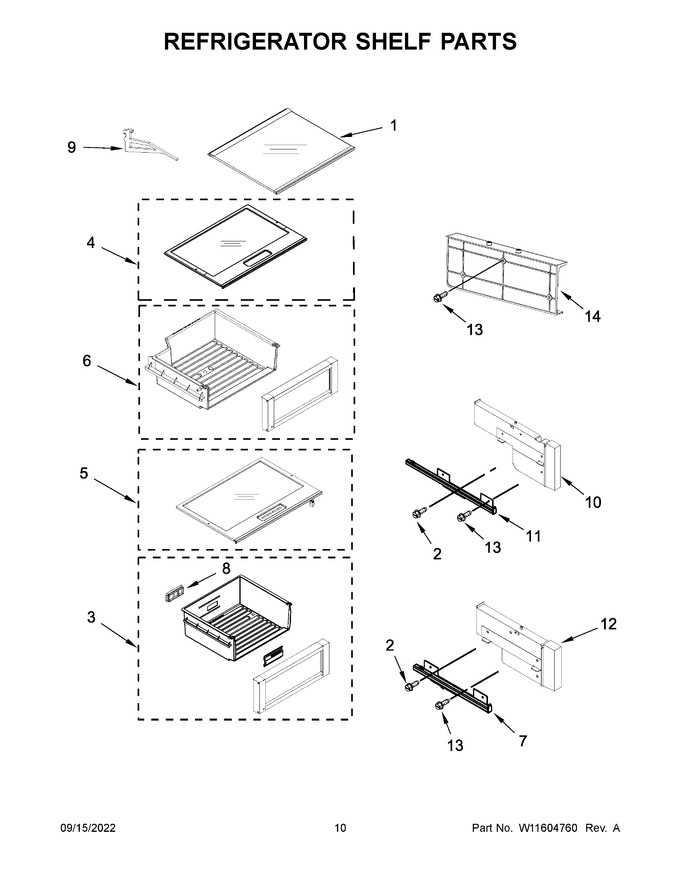

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11777984		Assembly, Shelf   (Replaces: W10187535)				$ 193.43
2	W10215666		Screw				$ 8.58
3	W11623363		Assembly, Crisper Pan   (Replaces: W11448308)		Appelez-nous	-
4	W11626006		Assembly, Meat Pan Cover   (Replaces: W11527867)		Appelez-nous	-
5	W11448730		Assembly, Crisper Cover		Appelez-nous	-
6	W11626007		Assembly, Meat Pan   (Replaces: W11450936)				$ 363.75
7	W10844011		Slide, Meat Pan (left Hand)				$ 288.18
8	2307810		Duct, Deli Pan		Appelez-nous	-
9	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 46.48
10	W11451491		Spacer, Crisper		Appelez-nous	-
11	W10844010		Slide, Crisper (left Hand)			Immediately	$ 308.80
12	W11451493		Spacer, Meat		Appelez-nous	-
13	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
14	W11451492		Spacer, Shelf Ls		Appelez-nous	-
11A	W10732303		Slide, Crisper (right Hand)			Immediately	$ 308.80
7A	W10732727		Slide, Meat Pan (right Hand)			Immediately	$ 308.65

    View Diagram in Separate Window       Print Part List
