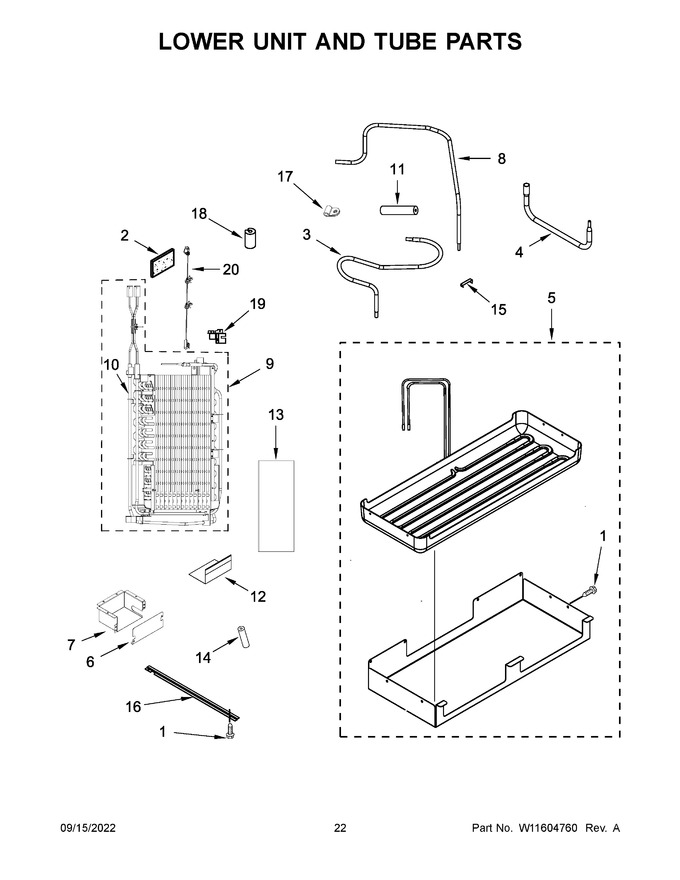

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 2 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 3 | W11444578 | Tube, Oil Trap Suction |
|
- | |||||
| 4 | W11530767 | Tube, Transition (drier/restrictor) |
|
- | |||||
| 5 | W11623101 | Assembly, Drain Pan (Replaces: W11491712) |
|
Immediately | $ 354.62 | ||||
| 6 | W11756952 | Cover, Wire Box (Replaces: W10321048) |
|
- | |||||
| 7 | WPW10309012 | Cover, Wiring (Replaces: W10309012) |
|
$ 73.37 | |||||
| 8 | W11445483 | Tube, Discharge |
|
- | |||||
| 9 | W11629713 | Assembly, Evaporator And Heater (also Order The Following Lokring Parts) (Replaces: W11408050) |
|
Immediately | $ 358.77 | ||||
| 10 | W11267071 | Heater, Defrost |
|
$ 201.86 | |||||
| 11 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 19.19 | ||||
| 12 | W10321050 | Shelf, Wiring Cover |
|
- | |||||
| 13 | W11448419 | Gasket, Fc Evaporator Bypass |
|
- | |||||
| 14 | 2215648 | Dampener |
|
$ 11.89 | |||||
| 15 | W10169509 | Clip, Heat Exchanger |
|
- | |||||
| 16 | 2320554 | Support, Drain Pan |
|
- | |||||
| 17 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 18 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
Immediately | $ 7.28 | ||||
| 19 | W11756943 | Bracket, Evaporator Right Top (Replaces: W11463140) |
|
- | |||||
| 20 | W11629268 | Thermistor, Evaporator (Replaces: W11549269) |
|
Immediately | $ 38.81 | ||||
| 9A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 41.87 | ||||
| 9B | W11506620 | 8 Nk Al 00 (suction Line To Evaporator) |
|
Immediately | $ 28.89 |
