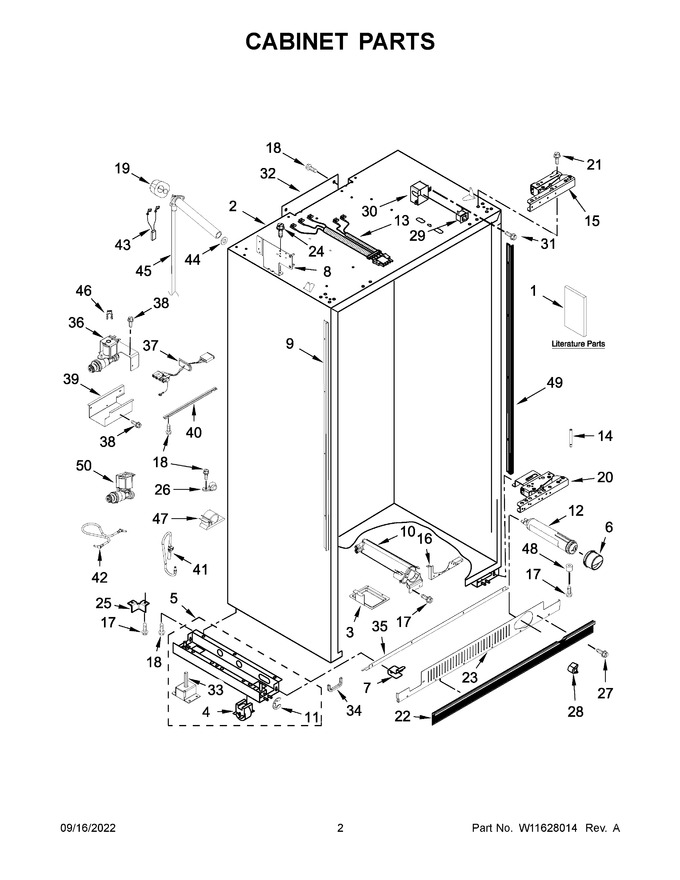

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner And Control Parts


05 - Freezer Liner And Icemaker Parts


06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11490758		Use And Care Guide		Appelez-nous	-
2	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 133.86
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 40.81
5	W10860229		Assembly, Support Base (left Hand)   (Replaces: W10279275)				$ 343.65
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 45.61
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 38.93
8	W11042558		Bracket, Grille Left Hand (grey)				$ 85.68
9	W10611999		Trim, Cabinet Side Left Hand (grey)			Immediately	$ 225.18
10	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
11	2006841		Ring, Retainer				$ 83.39
12	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
13	W11453279		Assembly, Light Switch Wire				$ 98.25
14	W10234202		Pin, Door Stop				$ 82.56
15	W10691145		Hinge (top) Left Hand (grey)			Immediately	$ 425.23
16	W11755873		Bracket, Filter   (Replaces: W10674648)				$ 72.30
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
18	W10784922		Screw (black)		Appelez-nous	-
19	W11490590		Cover, Fill Tube		Appelez-nous	-
20	W10691533		Hinge (bottom) Left Hand (grey)				$ 562.46
21	W11721628		Screw   (Replaces: W11370632)			Immediately	$ 13.30
22	W10859915		Skirt, Bottom Grille   (Replaces: W10188551)				$ 224.36
23	W11739148		Grille, Bottom (black)   (Replaces: W10182718)				$ 193.13
24	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
25	2006617		Bracket, Base Support (rear)		Appelez-nous	-
26	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 20.16
27	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 7.54
28	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 68.78
29	W11624786		Switch, Light   (Replaces: W11593919)				$ 38.80
30	W11624203		Cover, Switch (left & Right Hand)   (Replaces: W11577783)		Appelez-nous	-
31	W11624204		Screw   (Replaces: 486194)				$ 13.25
32	2215612		Cover, Air Duct		Appelez-nous	-
33	2005032		Leveler, Adjustable			Immediately	$ 180.06
34	2307584		Grommet, Crossover Tube				$ 21.06
35	W10740171		Trim, Top Grille				$ 167.48
36	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 178.99
37	W11479397		Assembly, Water Valve Wire				$ 70.87
38	WPW10141604		Screw   (Replaces: 487871)				$ 7.97
39	W10619291		Shield, Valve Electrical		Appelez-nous	-
40	2320559		Support, Valve				$ 79.91
41	W11690636		Line, Water   (Replaces: W10577944)				$ 117.49
42	W11533506		Tube, Water Filter   (Replaces: W11328530)				$ 29.84
43	W11623284		Heater, Fill Tube   (Replaces: W11489776)		Appelez-nous	-
44	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 9.39
45	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
46	W10782423		Locking Ring (1/4")				$ 21.93
47	W10663352		Clip				$ 19.72
48	2005433		Spacer				$ 21.00
49	W10612000		Trim, Cabinet Side (right Hand) (grey)				$ 223.83
50	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 178.99
15A	W11700299		Hinge (top) Right Hand (grey)   (Replaces: W10691136)			Immediately	$ 457.16
1A	W11443692		Energy Guide		Appelez-nous	-
1B	W11590464		Installation Instructions		Appelez-nous	-
1C	W11494195		Tech Sheet		Appelez-nous	-
20A	W10691534		Hinge (bottom) Right Hand (grey)			Immediately	$ 589.72
46A	W10782424		Locking Ring (5/16)		Appelez-nous	-
5A	W10860448		Assembly, Support Base (right Hand)   (Replaces: W10138423)			Immediately	$ 344.70
8A	W11042559		Right Hand (grey)				$ 87.55
