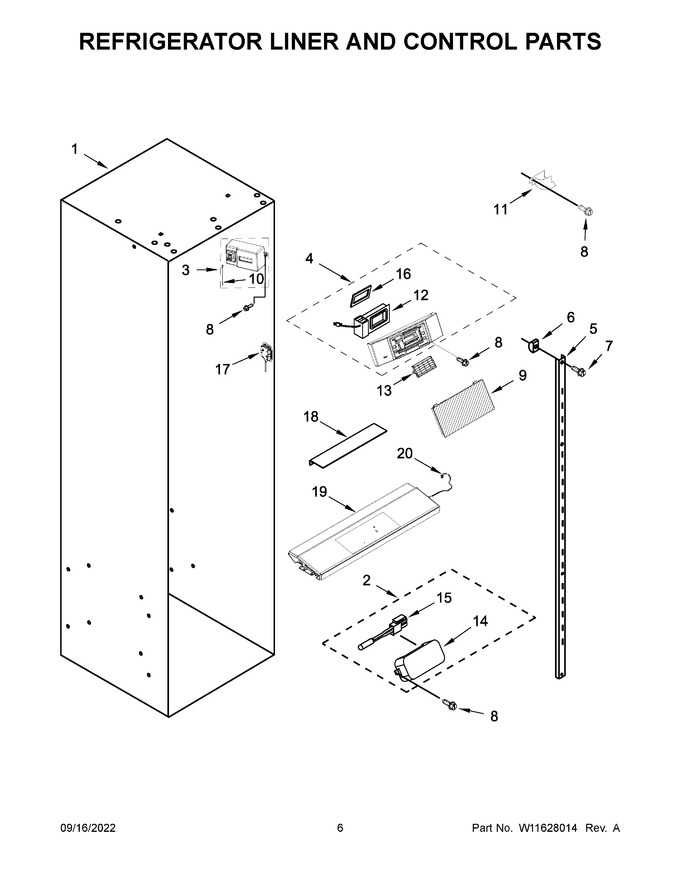

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
2	W11759117		Assembly, Thermistor   (Replaces: W11550867)			Immediately	$ 40.55
3	W11744513		Assembly, Air Diffuser Cover (includes Thermistor)   (Replaces: W11447197)				$ 117.52
4	W11741459		Assembly, Diffuser   (Replaces: W11449567)				$ 373.69
5	W11481489		Ladder, Shelf		Appelez-nous	-
6	2259445		Support, Ladder		Appelez-nous	-
7	W10678207		Screw   (Replaces: W10832438)				$ 14.79
8	W10678210		Screw (black)				$ 17.82
9	W11480887		Cover, Diffuser Assembly		Appelez-nous	-
10	WP2302937		Thermistor   (Replaces: 2302937)				$ 79.57
11	W10775705		Guard, Air Return		Appelez-nous	-
12	WP2220377		Baffle, Air   (Replaces: 2220377)			Immediately	$ 342.95
13	W10311524		Filter, Air   (Replaces: W10315189)			Immediately	$ 12.91
14	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 97.29
15	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
16	W11480891		Gasket, Air Baffle				$ 27.10
17	W11484836		Assembly, Led Module   (Replaces: W11229041)			Immediately	$ 25.52
18	W10782835		Diverter, Crisper Cover				$ 57.02
19	W11626127		Assembly, User Interface   (Replaces: W11408127)			Immediately	$ 608.53
20	W11515049		Wire, User Interface Jumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
