SELECT A DIAGRAM

01 - Cover Sheet

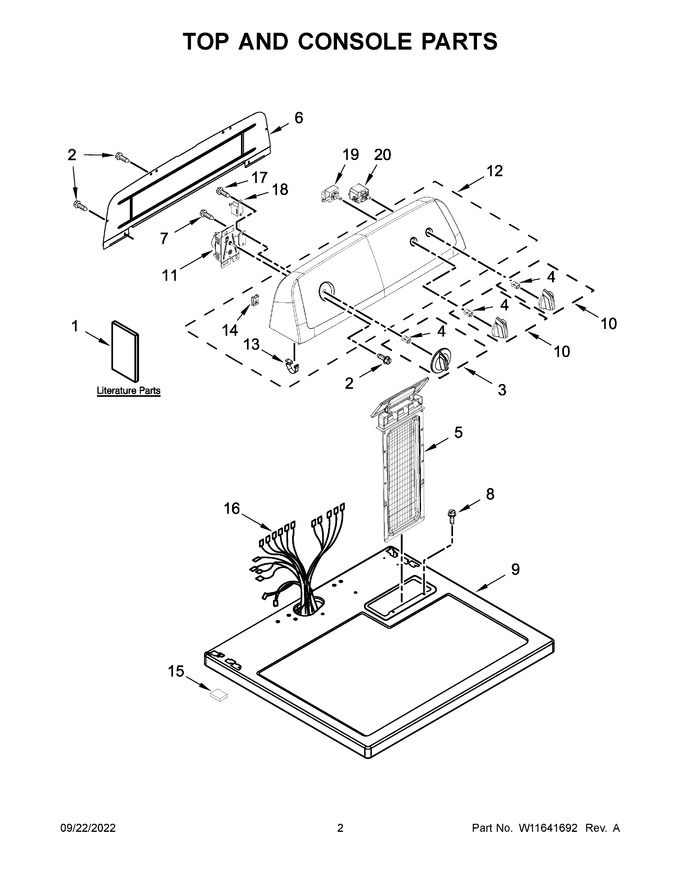

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11361424		Owners Manual		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
3	W11216549		Assembly, Timer Knob (white)   (Replaces: W11158829)				$ 55.11
4	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
5	W11778253		Lint Screen (white)   (Replaces: W11451394)			Immediately	$ 54.63
6	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 132.39
7	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
8	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
9	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
10	W11216550		Knob, Push To Start (white)   (Replaces: W11160348)			Immediately	$ 52.38
11	WPW10436302		Timer Assembly (60 Hz.)   (Replaces: W10436302)				$ 327.90
12	W11216548		Assembly, Console (white)   (Replaces: W11178662)				$ 386.78
13	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
14	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
15	3389682		Spacer, Toe Panel				$ 9.23
16	W11523109		Harness, Main		Appelez-nous	-
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
18	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
19	W11661755		Switch, Rotary   (Replaces: W10420747)				$ 34.70
20	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 88.11
1A	W11355746		Quick Start Guide		Appelez-nous	-
1B	W10876312		Wiring Diagram		Appelez-nous	-
1C	W11366444		Cycle Guide		Appelez-nous	-
