| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

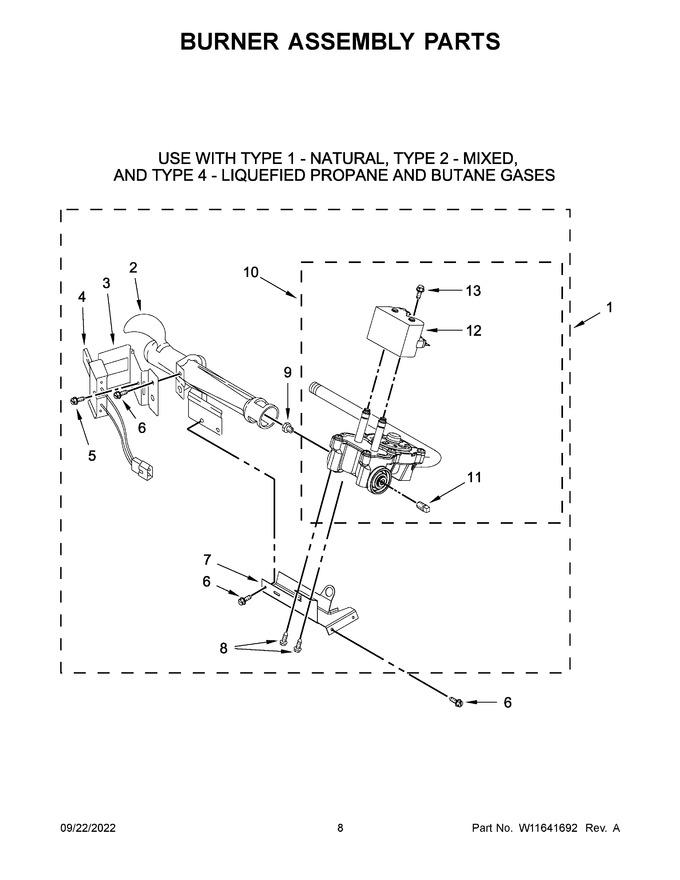

| 1 | W11652257 | Burner Assembly (60 Hz) (type 1) (Replaces: W11564940) |
|
Immediately | $ 416.14 | ||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 188.87 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 27.22 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Screw (Replaces: W10366705) |
|
$ 7.88 | |||||
| 6 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 7 | 693986 | Base, Burner |
|
- | |||||
| 8 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 9 | WP234826 | Orifice, Burner (type 1 (natural)) (Replaces: 234826) |
|
$ 39.27 | |||||
| 10 | W11646258 | Valve, Gas (60 Hz) (Replaces: W11564943) |
|
Immediately | $ 368.51 | ||||
| 11 | W10295523 | Pipe Plug |
|
- | |||||
| 12 | WPW10328463 | Coil (60 Hz) (Replaces: W10328463) |
|
Immediately | $ 79.02 | ||||
| 13 | 326049536 | Screw |
|
- | |||||
| NI | NP | Hinge, Grate (not Serviced) |
|
- | |||||
| NI | W11581316 | Kit, Lp Conversion |
|
Immediately | $ 97.02 |
